Pic 28 Pin Ic Lcd Project Development Baord
Rs. 145.00 Rs. 174.00
- Product Code: DEVBOARD-PIC
- SKU - SE-1115
- Availability: In Stock
- Price in reward points: 1
- For Bulk Order
9962060070
Quick support on WhatsApp (+919962060070) only between morning 11am-4pm, no call will be answered

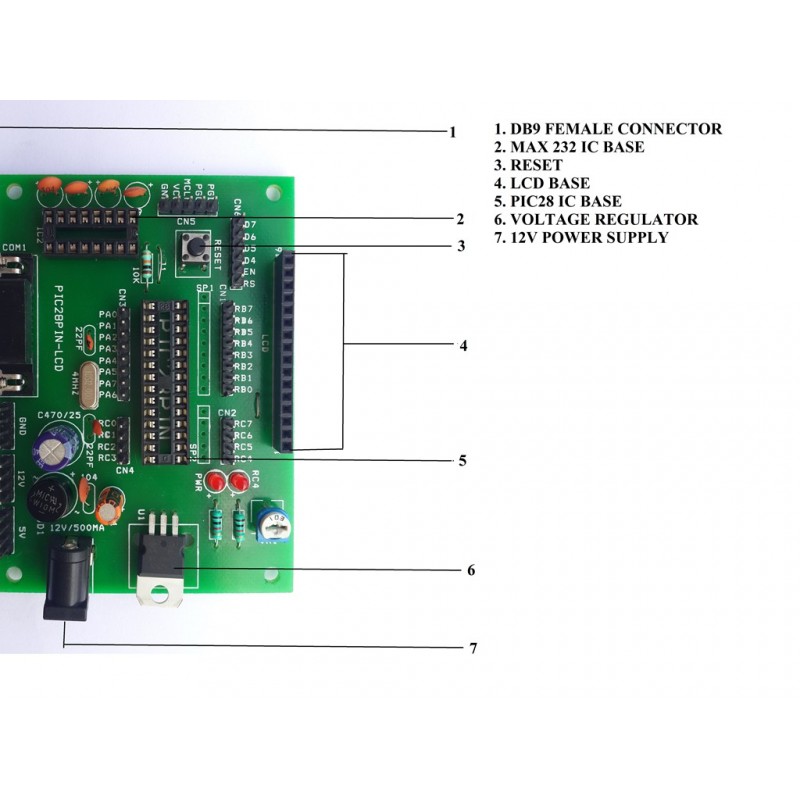

PIC16F73 DEVELOPMENT BOARD
PIC 28 Pin developments Board is ideal for for learning PIC microcontrollers. This board contains requirements like LEDs, Switches, in system programming, RS232 communication, etc. All Ports of controller are accessible though standard 10 pin FRC connector or simple header pins.
PIC16F73 MICROCONTROLLER DESCRIPTION
The PIC16F73 features 5 channels of 8-bit Analog-to-Digital (A/D) converter with 2 additional timers, 2 capture/compare/PWM functions and the synchronous serial port can be configured as either 3-wire Serial Peripheral Interface (SPI™) or the 2-wire Inter-Integrated Circuit (I²C™) bus and a Universal Asynchronous Receiver Transmitter (USART).
FEATURES
1. High performance RISC CPU
2. Only 35 single word instructions to learn
3. All single cycle instructions except for program branches which are two-cycle
4. Operating speed
5. DC - 20 MHz clock input
6. DC - 200 ns instruction cycle
7. Special Microcontroller Features:
8. Power-on Reset (POR)
9. Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)
10. Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation
11. Programmable code protection
12. Power saving SLEEP mode
13. Peripheral Features:
14. CMOS Technology:
15. Low power, high speed CMOS FLASH technology
16. Fully static design
17. Wide operating voltage range: 2.0 V to 5.5 V
18. High Sink/Source Current: 25 mA
PACKAGE INCLUDES:
1 PCS x Pic 28 Pin Ic Lcd Project Development Baord
15 days
