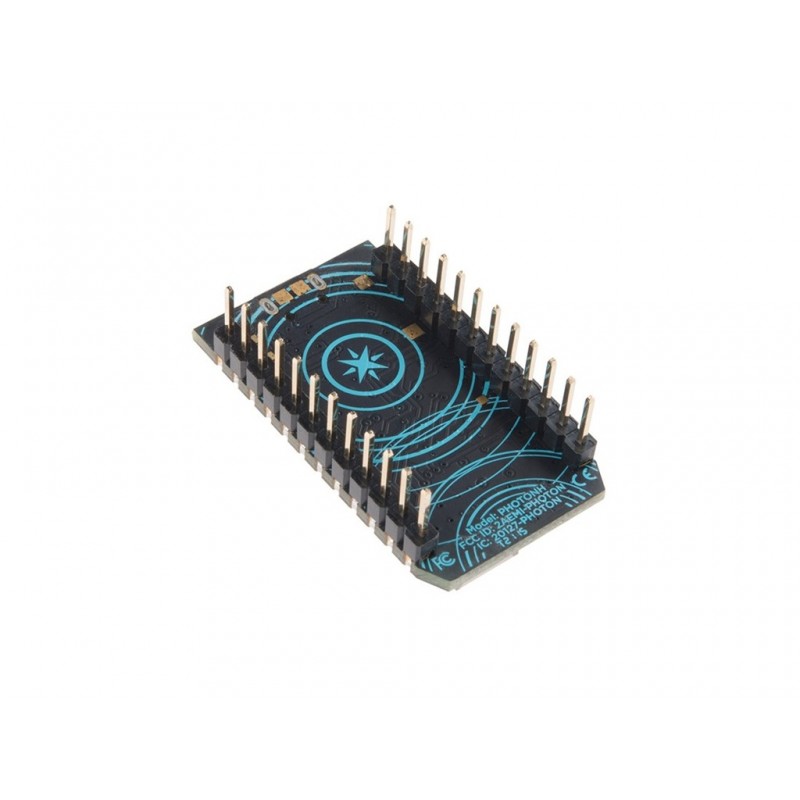

Particle Photon With Headers
Rs. 1.00 Rs. 2.00
- Product Code: AI-DEV
- SKU - SE-731
- Availability: 2-3 Days
- For Bulk Order
9962060070
Quick support on WhatsApp (+919962060070) only between morning 11am-4pm, no call will be answered
Particle’s Photon is a tiny Wi-Fi development kit for growing connected projects and products for the Internet of Things (IoT). It is simple to apply, effective and related to the cloud. Particle combines a powerful ARM Cortex M3 microcontroller with a Broadcom Wi-Fi chip in a tiny thumbnail-length module known as the P0 (P-Zero).
To get you began speedy, Particle adds a rock solid 3.3VDC SMPS power supply, RF and consumer interface additives to the P0 on a small unmarried-sided PCB called Photon. The design is open source, so when you are geared up to integrate the Photon into your product, you may.
The gear that make up the Photon’s surroundings (and come along with the board) are designed to permit you to build and create whether you're an embedded engineer, web developer, Arduino fanatic or IoT entrepreneur. You’ll be able to write your firmware in Particle web or local IDE, set up it over the air and construct your internet and cellular apps with ParticleJS and our Mobile SDK.
The Photon comes in with headers. Prototyping is straightforward with headers because the Photon plugs at once into popular breadboards and perf boards, and might additionally be installed with zero.1” pitch woman headers on PCB.
Features:
1. Particle PØ Wi-Fi module
o Broadcom BCM43362 Wi-Fi chip
o 802.11b/g/n Wi-Fi
o STM32F205RGY6 120Mhz ARM Cortex M3
o 1MB flash, 128KB RAM
2. On-board RGB status LED (ext. drive provided).
3. 18 Mixed-signal GPIO and advanced peripherals.
4. Open-source design.
5. Real-time operating system (FreeRTOS).
6. Soft AP setup."
| SPACIFICATION | |
| Input Supply voltage (V) | 3.3 ~ 5 |
| Supply Output Current (mA) | 100 |
| Storage Temperature (°C) | -40 ~ +85 |
| Operating temperature(°C) | -20 ~ +60 |
| Frequency Bandwidth (GHz) | 2.412 ~ 2.462 |
| Modulation | DSSS, CCK, OFDM, BPSK, QPSK, 16QAM, 64QAM |
OVERVIEW:
-Particle P0 Wi-Fi module.
-Broadcom BCM43362 Wi-Fi chip.
-11b/g/n Wi-Fi.
-STM32F205 120Mhz ARM Cortex M3.
-1MB flash, 128KB RAM.
-On-board RGB status LED.
PACKAGE INCLUDES:
1 PCS x Particle Photon Development Board
