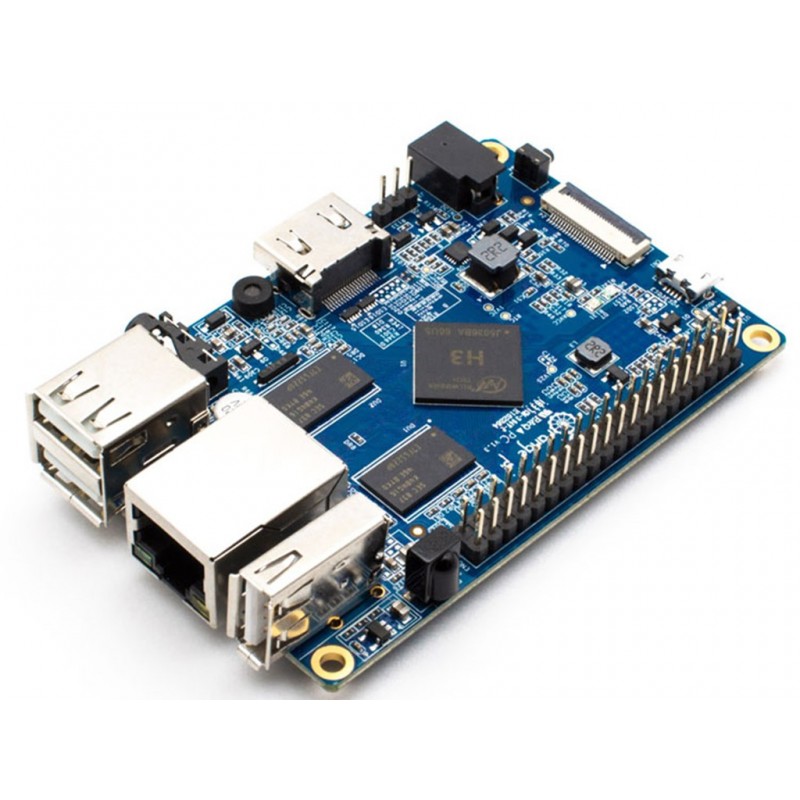

Orange Pi 2 Single Board Computer
Rs. 3,168.00 Rs. 3,897.00
- Product Code: DEVBOARD-SBC
- SKU -
- Availability: In Stock
- Price in reward points: 12
- For Bulk Order
9962060070
Quick support on WhatsApp (+919962060070) only between morning 11am-4pm, no call will be answered
"Orange Pi 2 an open-source single-board computer. It can run Android 4.4, Ubuntu, Debian, Rasberry Pi Image, as well as the banana pi Image. It uses the AllWinner H3 SoC, and has 1GB DDR3 SDRAM
Features and Specifications:
Hardware specification
CPU:
H3 Quad-core Cortex-A7 H.265/HEVC 4K
GPU:
·Mali400MP2 GPU @600MHz
·Supports OpenGL ES 2.0
Memory (SDRAM):
1GB DDR3 (shared with GPU)
Onboard Storage:
TF card (Max. 64GB) / MMC card slot
Onboard Network:
10/100M Ethernet RJ45
Onboard WIFI:
Realtek RTL8189ETV, IEEE 802.11 b/g/n
Video Input:
A CSI input connector Camera:
Supports 8-bit YUV422 CMOS sensor interface
Supports CCIR656 protocol for NTSC and PAL
Supports SM pixel camera sensor
Supports video capture solution up to 1080p@30fps
Audio Input:
MIC
Video Outputs:
Supports HDMI output with HDCP
Supports HDMI CEC
Supports HDMI 30 function
Integrated CVBS
Supports simultaneous output of HDMI and CVBS
Audio Output:
3.5 mm Jack and HDMI
Power Source:
DC input, USB OTG (Output only)
USB 2.0 Ports:
Four USB 2.0 HOST, one USB 2.0 OTG
Buttons:
Power Button(SW4), Recovery Button(SW2)
UBoot Button(SW3)
Low-level peripherals:
40 Pins Header,compatible with Raspberry Pi B+
GPIO(1x3) pin:
UART, ground.
LED:
Power led & Status led
Key:
IR input，UBOOT，POWER
Supported OS:
Android Ubuntu, Debian, Rasberry Pi Image
Interface definition
Product size:
93 mm × 60mm
Weight:
46g"
| SPECIFICATION | |
| CPUH3 | Quad-core Cortex-A7 H.265/HEVC 4K |
| GPU | Mali400MP2 GPU @600MHz Supports OpenGL ES 2.0 |
| Memory (SDRAM) | 1GB DDR3 (shared with GPU) |
| Onboard Storage | TF card (Max. 64GB) / MMC card slot |
| Onboard Network | 10/100M Ethernet RJ45 |
| Onboard WIFI | Realtek RTL8189ETV, IEEE 802.11 b/g/n |
| Video Input | A CSI input connector Camera Supports 8-bit YUV422 CMOS sensor interface Supports CCIR656 protocol for NTSC and PAL Supports SM pixel camera sensor Supports video captur solution up to 1080p@30fps |
| Audio Input | MIC |
| Video Outputs | Supports HDMI output with HDCP Supports HDMI CEC Supports HDMI 30 function Integrated CVBS Supports simultaneous output of HDMI and CVBS |
| Audio Output | 3.5 mm Jack and HDMI |
| Power Source | DC input, USB OTG (Output only) |
| USB 2.0 Ports | Four USB 2.0 HOST, one USB 2.0 OTG |
| Buttons | Power Button(SW4), Recovery Button(SW2) |
| UBoot Button(SW3) | Low-level peripherals 40 Pins Header,compatible with Raspberry Pi B+ |
| GPIO(1x3) pin | UART, ground. |
| LED | Power led & Status led |
| Key | IR input，UBOOT，POWER |
| Supported OS | droid Ubuntu, Debian, Rasberry Pi Image |
| OVERVIEW | |
| CPUH3 | Quad-core Cortex-A7 H.265/HEVC 4K |
| GPU | Mali400MP2 GPU @600MHz Supports OpenGL ES 2.0 |
| Memory (SDRAM) | 1GB DDR3 (shared with GPU) |
| Onboard Storage | TF card (Max. 64GB) / MMC card slot |
| Onboard Network | 10/100M Ethernet RJ45 |
| Onboard WIFI | Realtek RTL8189ETV, IEEE 802.11 b/g/n |
| Video Input | A CSI input connector Camera Supports 8-bit YUV422 CMOS sensor interface Supports CCIR656 protocol for NTSC and PAL Supports SM pixel camera sensor Supports video captur solution up to 1080p@30fps |
| Audio Input | MIC |
| Video Outputs | Supports HDMI output with HDCP Supports HDMI CEC Supports HDMI 30 function Integrated CVBS Supports simultaneous output of HDMI and CVBS |
| Audio Output | 3.5 mm Jack and HDMI |
| Power Source | DC input, USB OTG (Output only) |
| USB 2.0 Ports | Four USB 2.0 HOST, one USB 2.0 OTG |
| Buttons | Power Button(SW4), Recovery Button(SW2) |
| UBoot Button(SW3) | Low-level peripherals 40 Pins Header,compatible with Raspberry Pi B+ |
| GPIO(1x3) pin | UART, ground. |
| LED | Power led & Status led |
| Key | IR input，UBOOT，POWER |
| Supported OS | droid Ubuntu, Debian, Rasberry Pi Image |
PACKAGE INCLUDES:
1 PCS x Orange H3 Pi 2 Single Board Computer
15 days
