Nokia 5110 Lcd Display Module Red
Rs. 175.00 Rs. 202.00
- Product Code: DISPLAY-LCD
- SKU - SE-4144
- Availability: 2-3 Days
- Price in reward points: 2
- For Bulk Order
9962060070
Quick support on WhatsApp (+919962060070) only between morning 11am-4pm, no call will be answered
The name of this item itself is sufficient to clarify its beginning. Truly obviously !!! this LCD module was utilized in old Nokia 5110/3310 PDAs. Presently its been broadly utilized by specialists for illustrations, text and so forth
In spite of the fact that it's a modern module, this LCD show is incredibly simple to utilize. The Nokia 5110 is a fundamental realistic LCD screen for heaps of uses. It was initially expected for as a phone screen.
This Nokia 5110 LCD Display Module is mounted on a simple to weld PCB. The Nokia 5110 LCD Module utilizes a Philips PCD8544 LCD driver, which is intended for cell phones.
Nokia 5110 LCD Display Module is an ease monochrome LCD module included 84 X 48 pixels that can be utilized to show rich designs and text content. This module is an update that acknowledges 5V input. So no additional level shifter is required.
It utilizes the PCD8544 regulator, which is a similar utilized in the Nokia 3310 LCD. The PCD8544 is a low force CMOS LCD regulator/driver, intended to drive a realistic showcase of 48 lines and 84 sections. All essential capacities for the showcase are given in a solitary chip, remembering for chip age of LCD flexibly and inclination voltages, bringing about at least outer segments and low force utilization. The PCD8544 interfaces to microcontrollers through a sequential transport interface.
Pin Configuration :
(Reset) RST—-> D3
(Chip Selection) CE—->D4
(Data/Commands Choice) DC—->D5
(Serial Data Line)Din—->D6
(Serial Clock Speed.)CLK—->D7
(Backlight Control Terminal) BL—->Gnd
Vcc—-> 5v to 7V
Gnd—>Gnd
Features :
-84 X 48 dot matrix LCD, can show 4 lines of characters.
-Use serial interface communicate with the master processor, the number of interface signal line reduced greatly, only 8 signal lines including power and GND.
-Support different types of MCU, such as the Arduino, AVR, SPI, MCS51 and so on.
-Transfer rate up to 4Mbps, can full speed write display data without waiting time.
-Can use the conductive glue to connect the module to the printed board, without cables. The metal hooks on the module can fix the module on the printed board, which is very easy to install and replace.
-LCD controller/driver chip has been bound to LCD chip, the volume of LCD is small.
-Low power supply, the working current in a normal situation is lower than 200µA and has the power-down mode.
-“LIGHT” linked with GND, the backlight to be lit.
-Need you to compress the screen and PCB tighter, might be got loose after the delivery.
-Use a 5 to 7V controller, otherwise, the display could be quite vague.
| SPECIFICATION | |
| Driver IC | PCD8544 |
| Backlight | Blue |
| Input Voltage (V) | 5 to 7 V |
| Pixel Resolution | 84 x 48 |
| Motor Mounting Holes Dia. (mm) | 2 |
| Shipment Dimensions | 6 × 6 × 1.5 cm |
| OVERVIEW | |
| Operating supply voltage | 5 to 7V |
| Data interface level | 2.7-5V. |
| Resolution | 84 x 48 pixel |
| Backlight | Blue. |
PACKAGE INCLUDES:

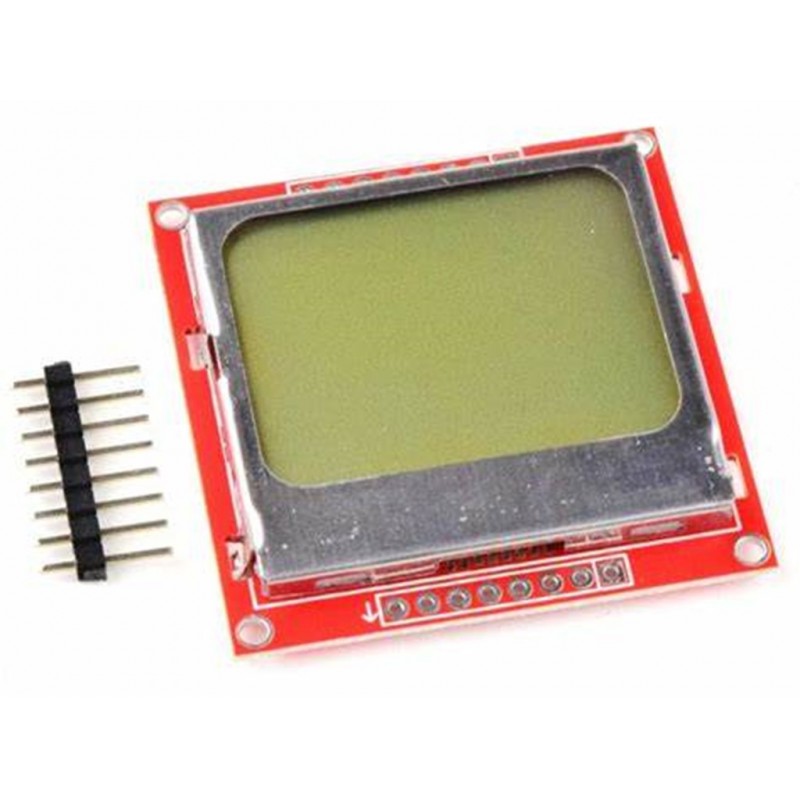

1 PCS x Nokia 5110 Lcd Display Module Red
