Ne555 Delay Monostable Switch Module Time Delay Switch Delay On Vehicle Electrical Delay 12V

Rs. 52.00 Rs. 60.00

  • Product Code: RELAY-TIME
  • Availability: In Stock
  • Price in reward points: 1
  • For Bulk Order 9962060070

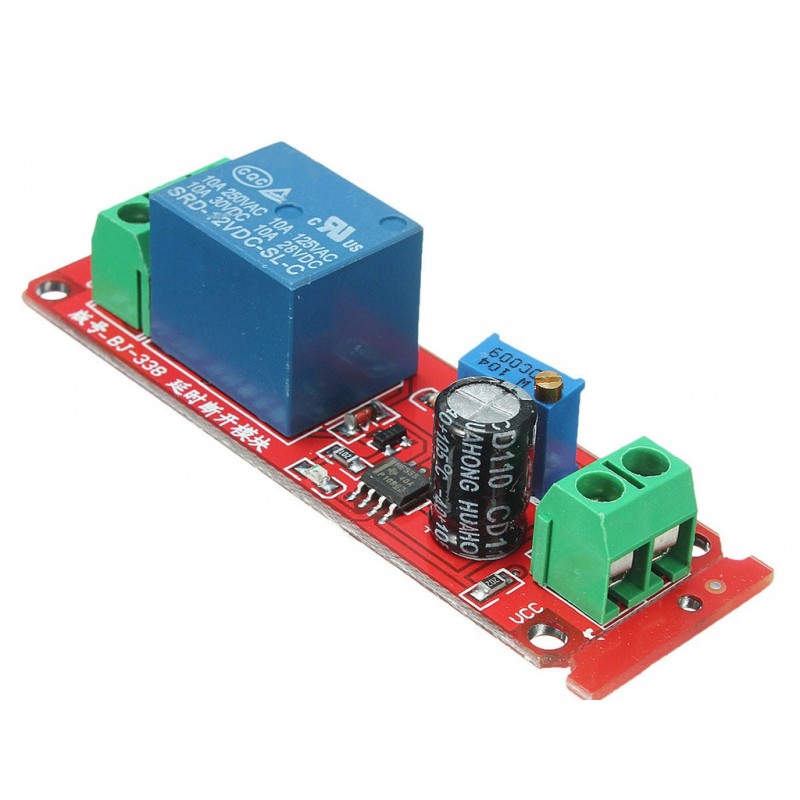

  • This NE555 Delay Monostable Switch Module item is a timer switch module, based on the NE555 chip, high-performance timing CPU design.
  • The power indicator LED and switch trigger timing indication LEDs.
  • Timing from microseconds to long hours. Applicable to vehicle equipment-delay to prevent car ignition, prevention of high sudden current to burn components and devices.
  • This is a monostable generator based on the NE555 integrated circuit.
  • It has an adjustable delay time from 0 to 10 seconds using the potentiometer or by changing the capacitance. It is also capable of controlling the device below 220V/10A.

Features:
-Precision Pulse Generation / Timing.
-Monostable Operation.
-Standby no power consumption
-Excellent temperature stability of 0.005%/°C
-Time can be adjusted by a potentiometer, the default is 0-25 seconds.
-Module signal side design has optocoupler isolation, anti-interference ability can adapt to the high-low level two kinds of control signal application, suitable for industrial control.

SPECIFICATION
Chipset               NE555
Input Voltage (V)     12
Adjustable Time(s)    0 to 10
AC Control Voltage    250V @max. 10A
DC Control Voltage    30V @max. 10A
Max. Load(W)          2200
OVERVIWE
Module based on the NE555 chip.
Input voltage      DC 12V
Adjustable time    0-10 s
AC Control voltage 250V/max. 10A
DC Control Voltage 30V/max. 10A
Max. load          2200W

PACKAGE INCLUDES:

1 PCS x Ne555 Delay Monostable Switch Module Time Delay Switch Delay
