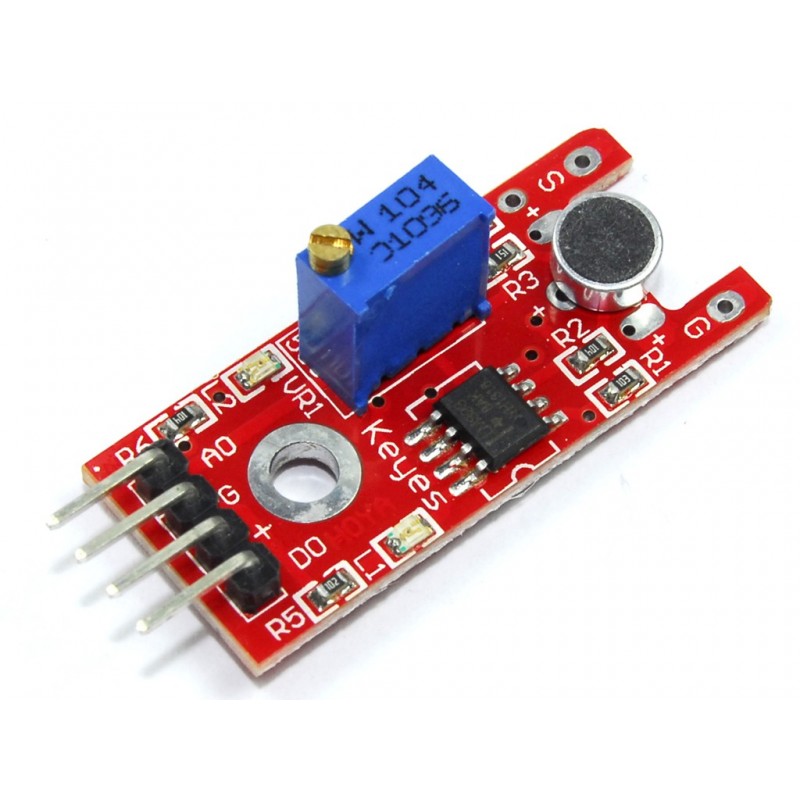

Microphone Amplifier Module Sound Module Mic Module Microphone Module Voice Detection Module

Rs. 34.00 Rs. 39.00

  • Brand: https://www.ti.com/product/LM393
  • Product Code: SEN-SOUND
  • SKU -
  • Availability: In Stock
  • For Bulk Order 9962060070
    Quick support on WhatsApp (+919962060070) only between morning 11am-4pm, no call will be answered
This module uses a expert microphone amplifier IC with low output noise, small length, excessive sensitivity, constant gain of 20dB, and helps 3.3v and 5v electricity deliver modes.

SPECIFICATIONS
IC Chip                   LM393
Operating Voltage(VDC)    5
PCB Size (mm)             35×14
Mounting Hole(mm)         3
Shipment Weight           0.02 kg
Shipment Dimensions       10 × 10 × 2 cm

OVERVIEW:

-5V Dc Power Supply

-Power indicator light

-The comparator output is light

-High Sensitivity Sound Microphone Sensor Detection Module

-Electric condenser microphone

PACKAGE INCLUDES:

1 PCS x Microphone Amplifier Module Sound Module Mic Module Microphone Module Voice Detection Module


//SOURCE CODE TAKEN FROM BELOW LINK

//https://create.arduino.cc/projecthub/electropeak/how-to-use-ky-037-sound-detection-sensor-with-arduino-a757a7

/*

KY-037 Sound Detection Sensor + Arduino

modified on 16 Apr 2019

by Mohammadreza Akbari @ Electropeak

https://electropeak.com/learn/

*/

int sensor_value = 0;

int threshold = 540; //Enter Your threshold value here

int abs_value = 0;

int ledCount = 10; //number of Bargraph LEDs

int bargraph[] = {0, 1, 2, 3, 4, 5, 6, 7, 8, 9}; // Bargraph pins

void setup() {

Serial.begin(9600); // setup serial

for (int i = 0; i <= ledCount; i++) // Define bargraph pins OUTPUT

{

pinMode(bargraph[i], OUTPUT);

}

for (int i = 0; i <= 9; i++)

{

digitalWrite(i, LOW);

}

}

void loop() {

sensor_value = analogRead(A0);

abs_value = abs(sensor_value - threshold);

int ledLevel = map(abs_value, 0, (1024 - threshold), 0, ledCount);

for (int i = 0; i < ledCount; i++) {

// if the array element's index is less than ledLevel,

// turn the pin for this element on:

if (i < ledLevel) {

digitalWrite(bargraph[i], HIGH);

Serial.println(i);

}

// turn off all pins higher than the ledLevel:

else {

digitalWrite(bargraph[i], LOW);

}

}

}
