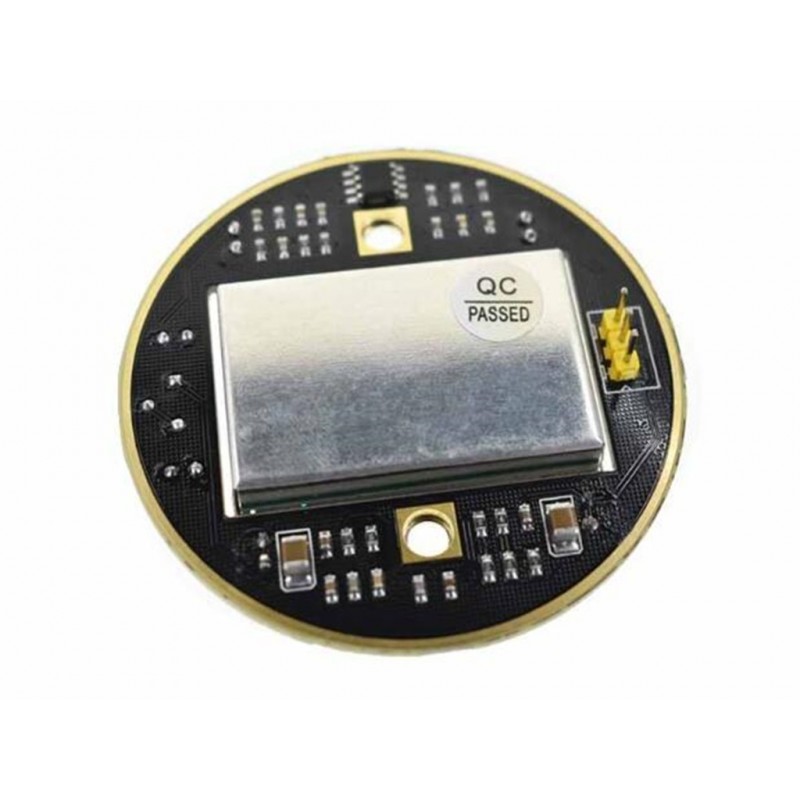

Mh 100X Microwave Induction Module
Rs. 563.00 Rs. 693.00
- Product Code: SEN-MICROWAVE
- Availability: In Stock
- Price in reward points: 8
- For Bulk Order
9962060070
-A microwave motion detector is an object microwave detector designed using Doppler radar.
-Unlike conventional infrared sensors, microwave sensors detect the movement of an object by detecting microwaves reflected from the object.
-The subject of discovery will not be limited to the human body, and there are many other things.
-The microwave sensor does not affect the ambient temperature, has a large detection range and high sensitivity, and is widely used in industrial, transport and commercial devices such as vehicle speed, automatic doors, touch lights and parking sensors.
-Due to the versatility of microwave sensor detection objects, in real-world applications, it will match with another sensor for targeted detection.
-For example, a microwave sensor + infrared pyroelectric sensor, can effectively determine if someone has passed, there will be no sun, was disturbed by the color of clothes, will not respond to other objects.
Features:
-This detection method has the following advantages over other s detection method:
-Contactless detection
-Does not affect temperature, humidity, noise, air flow, dust, light, etc., suitable for harsh conditions
-Protection against radio frequency interference
-The output power is small, does not harm the body structure
-Detection distance
-Support for the detection of non-living objects
-The direction of the microwave oven is very good, the speed is equal to the speed of light
| SPECIFICATIONS: | |
| Operating voltage | 5V |
| Operating current (CW) | 50mA max., 30mA typical |
| Size | R = 30.6 mm |
| Detection distance | used with adapter plate or control circuit below, 2-16 m continuously adjustable (minimum 2 m, maximum 16 m) |
| Helium Frequency | 10.525 GHz |
| Frequency setting accuracy | 3 MHz |
| Output Power (Minimum) | 13dBm EIRP |
| Harmonic emission | <-10 dBm |
| Average current (5% DC) | 2 mA typ. |
| Pulse Width (min.) | 5 uSec |
| Duty Cycle (min.) | 1% |
| Sensitivity (10 dB S / N factor) 3 Hz to 80 Hz bandwidth | -86dBm |
| 10.3 Hz to 80 Hz | 10uV bandwidth |
| Antenna Gain | 8dBi |
| Vertical Beam Width 3 dB | 36 degrees |
| Water Level 3 dB Beam Width | 72 degrees |
OVERVIEW:
-Operating voltage: 5V
-Range: 2 - 16 meters
-Onboard dower LED
-Onboard detection LED
-Arduino Compatible
PACKAGE INCLUDES:
1 PCS x Mh 100X Microwave Induction Module
//SOURCE CODE TAKEN FROM BELOW LINK
//https://theorycircuit.com/hb100-microwave-motion-sensor-interfacing-arduino/
#include “FreqPeriod.h”
double lfrq;
long int pp;
void setup() {
Serial.begin(9600);
FreqPeriod::begin();
Serial.println(“FreqPeriod Library Test”);
}
void loop() {
pp = FreqPeriod::getPeriod();
if (pp) {
Serial.print (“period: “);
Serial.print(pp);
Serial.print(“ 1/16us / frequency: “);
lfrq = 16000400.0 /pp;
Serial.print(lfrq);
Serial.print(“ Hz “);
Serial.print(lfrq/31.36);
Serial.println( “ Mph “);
}
