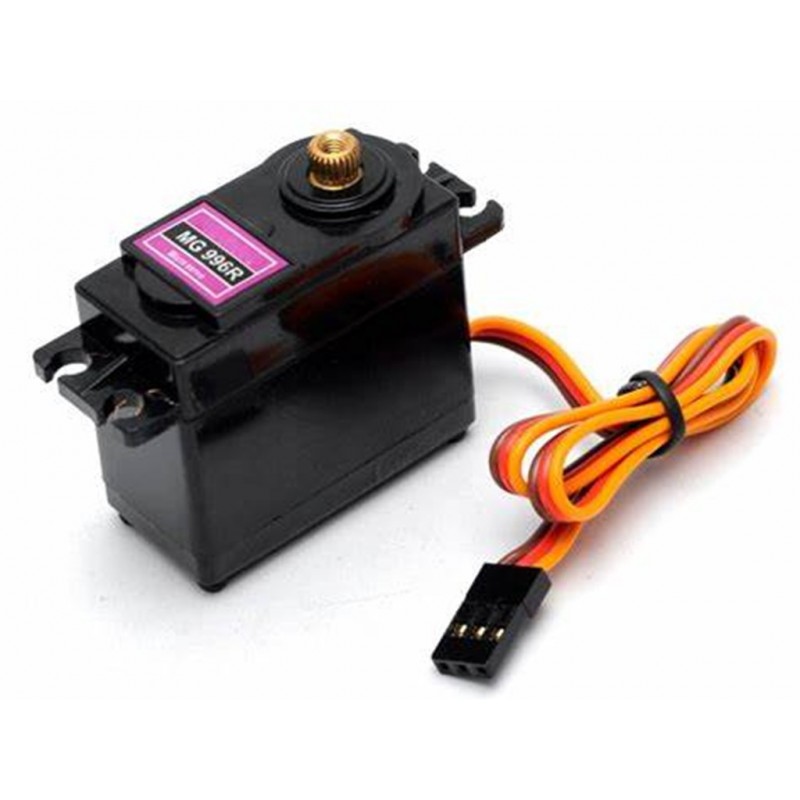

Towerpro Mg996R Digital High Torque Servo Motor
Rs. 203.00 Rs. 228.00
- Product Code: MOTOR-SERVO
- Availability: 2-3 Days
- Price in reward points: 3
- For Bulk Order
9962060070
-This Continuous Rotation MG996R has the ability to rotate continuously in 360 degrees.
-It makes this servo motor perfect for robotics or even the rotation of camera sliders! Please refer to the product configure table provided in the attachments.
Wire Description
-RED – Positive
-Brown – Negative
-Orange – Signal
Features:
-Gear Type: Metal gear
-Servo Plug: JR (Fits JR and Futaba)
-Servo arms & screws included, and fit with Futaba servo arm
-It’s universal “S” type connector that fits most receivers, including Futaba, JR, Hitec ,GWS, Cirrus, Blue Bird, Blue Arrow, Corona, Berg, Spectrum.
| SPECIFICATIONS: | |
| Operating Voltage | 4.8 ~ 6.6v |
| Temperature Range | 0- 55℃ |
| Stall Torque @4.8V | 9.40 kg-cm |
| Stall Torque @6.6V | 11 kg-cm |
| Operating Speed @4.8V | 0.19sec/60° |
| Operating Speed @6.6V | 0.15sec/60° |
| Dead Bandwidth | 1uS |
| Gear Type | Metal |
| No. of teeth | 25 |
| Length (mm) | 40.7 |
| Width (mm) | 19.7 |
| Height (mm) | 42.9 |
| Weight (gm) | 55 |
| Shipment Dimensions | 5 × 3 × 5 cm" |
| OVERVIEW: | |
| Weight | 55g |
| Operating speed | 0.19sec/60degree (4.8v); 0.15sec/60degree (6.0v) |
| Operating voltage | 4.8 ~ 6.6V |
| Gear Type | Metal gear |
| Dead band width | 1us |
PACKAGE INCLUDES:
1 PCS x Mg996R Towerpro Digital High Torque Servo Motor
