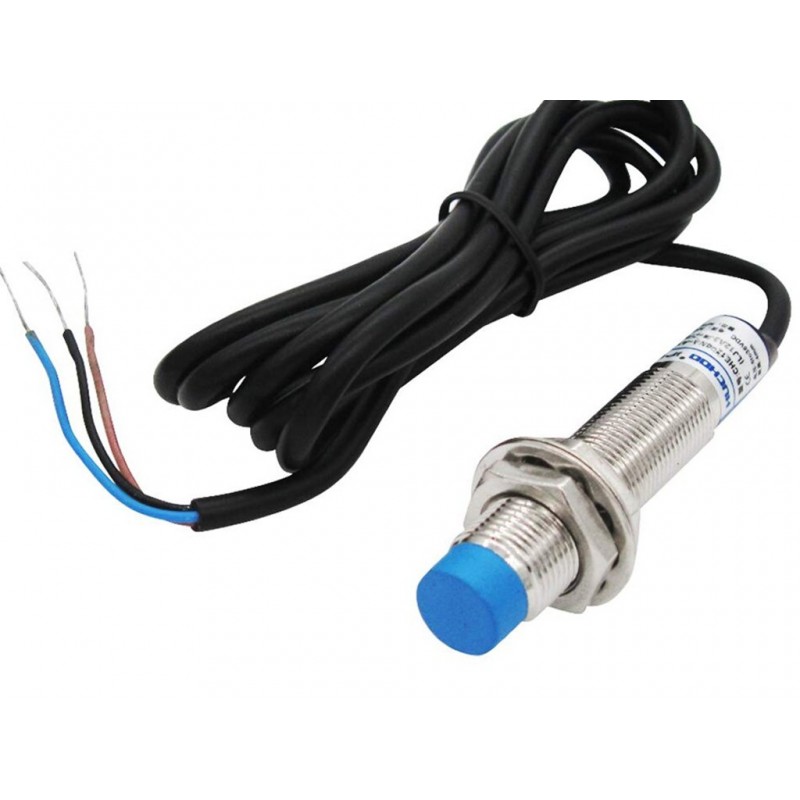

Inductive Proximity Sensor Detection Switch Npn Dc6 36V 4Mm Normally Open Switch Lj12A3 4 Z Bx
Rs. 96.00 Rs. 106.00
- Product Code: SEN-METAL
- SKU -
- Availability: In Stock
- Price in reward points: 1
- For Bulk Order
9962060070
Quick support on WhatsApp (+919962060070) only between morning 11am-4pm, no call will be answered
| SPECIFICATIONS: | |
| Model | LJ12A3-4-Z/BX-5V M12 NPN-NO Switch |
| Operating Voltage | DC 6-36V range within Universal |
| Output Type | NPN Normally Open Three-line |
| Detection object | Metal Objects |
| Detection distance | 4 mm |
| Output Current | 300 mA |
| Working temperature | -30 ° to + 23 ° ±15% |
| Cable Length | 110 CM |
| Dimensions | 12 mm Screw Diameter |
| Weight | 47 gm |
| Shipment Weight | 0.125 kg |
| Shipment Dimensions | 10 × 6 × 5 cm |
OVERVIEW:
-Output Type: NPN-NO
-Red LED checks the state of the proximity sensor
-High repeated positioning accuracy
-High switching frequency
-Wide voltage range
-Antivibration, dust, water and oil prevention
-Reverse power protection, short circuit protection, directly connecting with PLC
-Can replace small switches and limit switches
-₹ 250.00 (inc GST)
-₹ 211.86 (+18% GST extra)
PACKAGE INCLUDES:
1 PCS x Lj12A3 4 Z Bx Inductive Proximity Sensor Detection Switch Npn
//SOURCE CODE TAKEN FROM BELOW LINK
//https://www.electroniclinic.com/proximity-sensors-inductive-and-capacitive-proximity-sensors-with-arduino/
int limitswitch=13;
int state= LOW;
int value;
void setup()
{
Serial.begin(9600);
pinMode(limitswitch,INPUT);
}
void loop()
{
Value = digitalRead(limitswitch);
if(value!=state)
{
state=value;
Serial.println("sensor value =");
if (state==0)
{
Serial.println("target detected");
}
else{
Serial.println("No target detected");
}
}
}
