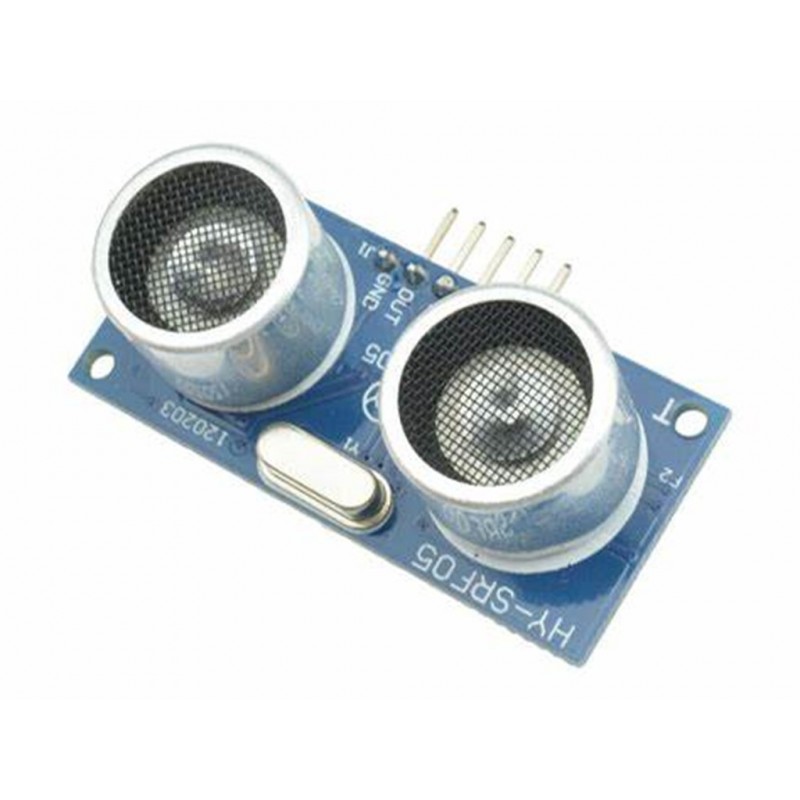

Ultrasonic Distance Measurement Sensor Module Hy Srf05
Rs. 123.00 Rs. 148.00
- Product Code: SEN-ULTRA
- SKU -
- Availability: 2-3 Days
- Price in reward points: 1
- For Bulk Order
9962060070
Quick support on WhatsApp (+919962060070) only between morning 11am-4pm, no call will be answered
HY-SRF05
the module performance is stable, measure the distance accurately:
Can and SRF05, SRF02 ultrasonic distance measuring module and other comparable.
Module precision, blind spots (2cm) super close, stable ranging success of this product to market under the strong!
Main technical parameters:
| Voltage | DC5V |
| Static current | less than 2mA |
| level output | high-5V |
| level output | the end of 0V |
| Sensor angle | not more than 15 degrees |
| Detection distance | 2cm-450cm |
| High precision | up to 0.3cm |
| Connection | VCC, trig (control side), echo (receiving end), GND |
Usage:
10US a control population of more than a high-fat, you can wait to receive high output port. A timer can be opened with the output timing, when the port goes low when the timer value can be read this when the time for this distance, only calculate the distance. This constant cycle of measurement, you can reach the value of the mobile measurement ~ ~
Module works:
-The IO trigger location, the high signal to at least 10us;
-the module automatically sends eight 40khz square wave, automatically detects whether a signal return;
-a signal back, through the IO of a high output, high duration is Ultrasonic time from launch to return.
-Test distance = (time * High speed of sound (340M / S)) / 2;
| SPECIFICATIONS | |
| Voltage | DC5V |
| Static current | less than 2mA |
| level output | high-5V |
| level output | the end of 0V |
| Sensor angle | not more than 15 degrees |
| Detection distance | 2cm-450cm |
| High precision | up to 0.3cm |
| OVERVIEW | |
| Trigger Pin Format | 10 uS digital pulse |
| Sound Frequency | 40 kHz |
| Echo Pin Output | 0-Vcc |
| Echo Pin Format | output is DIGITAL and directly proportional with range. See our conversion formula above. |
| Measurement Range | 2cm to 4.5m |
| Measurement Resolution | 0.3cm |
| Measurement Angle | up to 15 deg |
| Measurement Rate | 40 Hz |
| Supply Voltage | 4.5V to 5.5V |
| Supply Current | 10 to 40mA |
PACKAGE INCLUDES:
1 PCS x Ultrasonic Distance Measurement Sensor Module Hy Srf05
