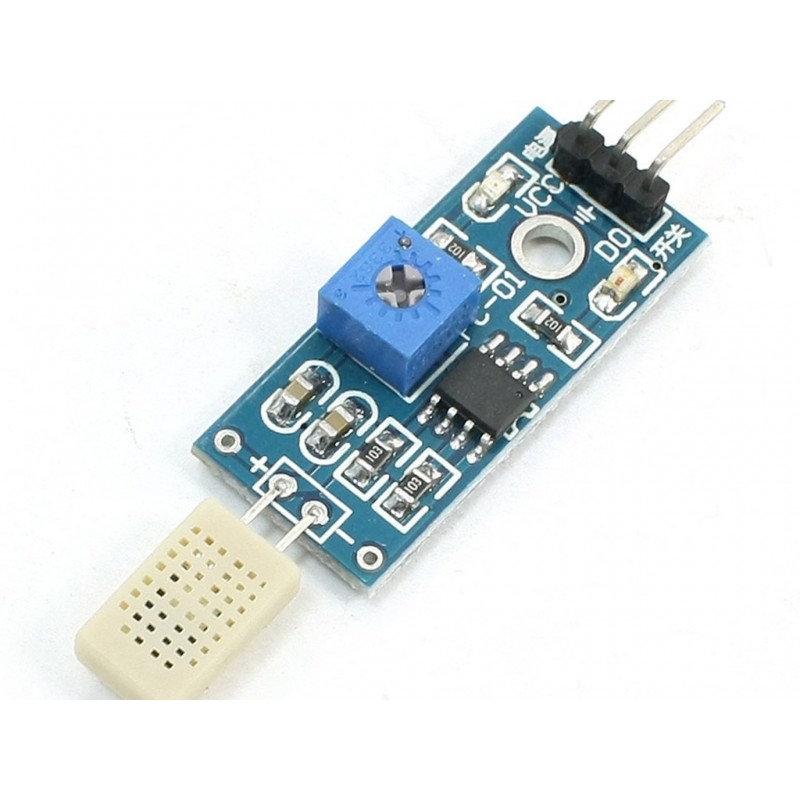

Hr 202 Humidity Detection Sensor Module With Lm393 Amplifier Board
Rs. 79.00 Rs. 95.00
- Product Code: SEN-HUM
- SKU -
- Availability: In Stock
- Price in reward points: 1
- For Bulk Order
9962060070
Quick support on WhatsApp (+919962060070) only between morning 11am-4pm, no call will be answered
-Using high-quality HR202 humidity sensor.
-The comparator output signal is clean, good waveform, driving ability, more than 15mA
-The humidity sensor module is sensitive to environmental humidity, generally used to detect ambient humidity by adjusting the potentiometer, for detecting the humidity can change the threshold ( i.e. the humidity control), such as the need to control the ambient humidity of 60% ,then the corresponding module is transferred to the green light and humidity environment , DO high power output when flat, humidity values below this setting, high output, the green light does not shine
-DO output can be directly connected to the microcontroller through the microcontroller to detect high and low, thereby detecting the humidity changes in the environment.
-DO output of the relay module can directly drive the shop, which can form a humidity switch, control-related equipment to work in the right environment.
-Small plates AO analog output modules can be connected OUR AD through the AD converter, you can get a more accurate numerical ambient humidity With the screw holes of 3mm, easy fixed installation.
Feature:
-Adjustable Sensitivity, External GND.
-Detect Ambient Humidity.
-Provided with Fixed Bolt Hole, Convenient to Install.
-Power Indicator Light & Digital Output Indication Lamp.
-Using LM393 Chip for Stable Work.
-DO Small Digital Outputs Interface (0 & 1).
-Adjustable trigger level from preset.
-LEDs indicating output and power.
| SPECIFICATIONS: | |
| IC Chip | HL-01 |
| Operating voltage (v) | 3.3 ~ 5V DC |
| Operating Current | 15mA |
| Humidity Range | 20 95%RH |
| Output Digital | 0V or 5V, |
| Length (mm) | 51 |
| Width (mm) | 15 |
| Height (mm) | 7 |
| Weight (gm) | 5 |
| Shipment Dimensions | 6 × 3 × 3 cm |
OVERVIEW:
-Adjustable Sensitivity, External GND.
-Detect Ambient Humidity.
-Provided with Fixed Bolt Hole, Convenient to Install.
-Power Indicator Light & Digital Output Indication Lamp.
-Using LM393 Chip for Stable Work.
-DO Small Digital Outputs Interface (0 & 1).
PACKAGE INCLUDES:
1 PCS x Hr 202 Humidity Detection Sensor Module With Lm393 Amplifier Board
