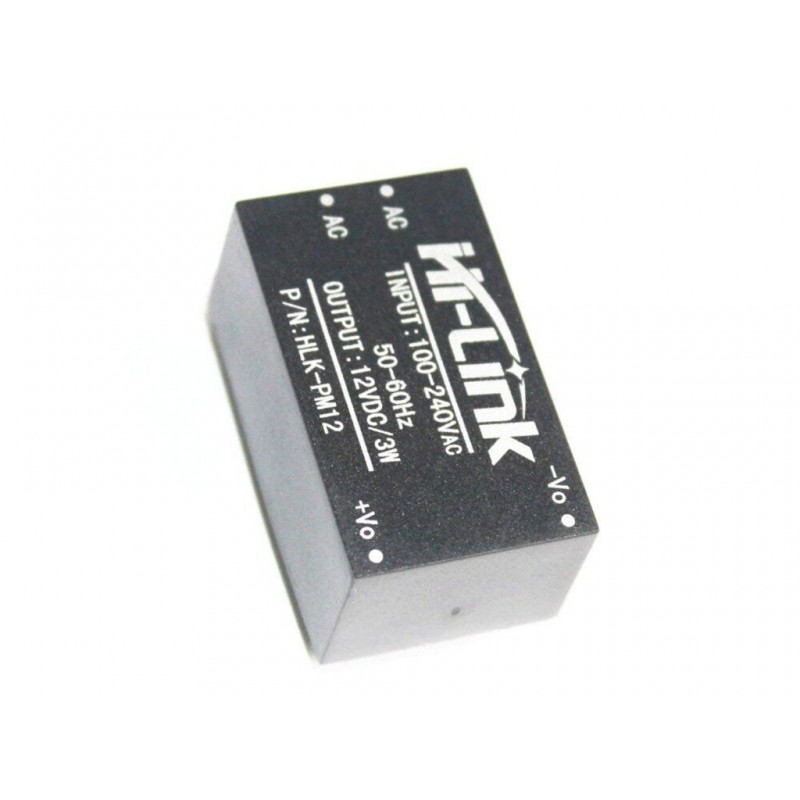

Hi Link Hlk Pm12 12V 3W Switch Power Supply Module
Rs. 192.00 Rs. 231.00
- Product Code: PWR-AC-DC
- Availability: In Stock
- Price in reward points: 2
- For Bulk Order
9962060070
"HLK-PM12 12V/3W Switch Power Supply Module is plastic enclosed PCB established remoted switching step-down energy deliver module. It can deliver 12V DC from 120V AC – 230V AC and has a power score of 3 Watt. This makes it best for small initiatives that wishes a 12 volt deliver from mains. There are many benefits for these modules, which includes low-temperature upward push, low electricity, excessive performance, high reliability, high-safety isolation and so on.
This Power Supply Module voltage supply is a switching supply, so that you do not have to worry approximately fluctuations in voltage grid. It is designed to be set up on the PCB and is the best option to strength pads which you take. It is widely used in a clever home, automation and manage, communication device, instrumentation and different industries.
Features:
- Meet UL, CE requirements,
- Ultra-thin, ultra-small
- All voltage input (AC: 90 ~ 264V)
- Low ripple and low noise
- Output overload and short circuit protection
- High efficiency, high power density
- The product is designed to meet the requirements of EMC and Safety Test
- Low power consumption, environmental protection, no-load loss <0.1W
Environmental conditions:
| Technical indicators | Single bit |
| Working temperature | – 20-60 +degree |
| Storage temperature | + 80-40 -degree |
| Relative humidity | 5-95% |
| The cooling way | Natural cooling |
| The atmospheric pressure | 80-106Kpa |
| The altitude | 2000M or less. |
| SPECIFICATION | ||
| AC Input Voltage Range | 90 ~ 264V | |
| Output DC Voltage | 12 V | |
| Input Low Voltage Efficiency | Vin=110VAc, Output full-load | 69% |
| Input High Voltage Efficiency | Vin=220VAc, output full-load | 70% |
| Long-term reliability | MTBF 100000h | |
| Load rated output voltage | +5±0.1 | |
| Short-term maximum output current | 1000mA | |
| The maximum output current for a long time | 600mA | |
| Operating Temperature | -20 to +60°C | |
| Store Temperature | -40 to +80°C | |
| Relative humidity | 5 to 95% | |
| Rated input voltage | 100-240VAc | |
| Maximum input current | <0.2A | |
| Input current surge | <10A | |
| Color | Black | |
| Voltage Regulation | ±0.2 % | |
| Load Regulation | ±0.5 % |
OVERVIEW:
-Meet UL, CE requirements,
-Ultra-thin, ultra-small
-All voltage input (AC: 90 ~ 264V)
-Low ripple and low noise
-Output overload and short circuit protection
-High efficiency, high power density
-The product is designed to meet the requirements of EMC and Safety Test
PACKAGE INCLUDES:
1 PCS x Hi Link Hlk Pm12 12V 3W Ac To Dc Power Supply Module
