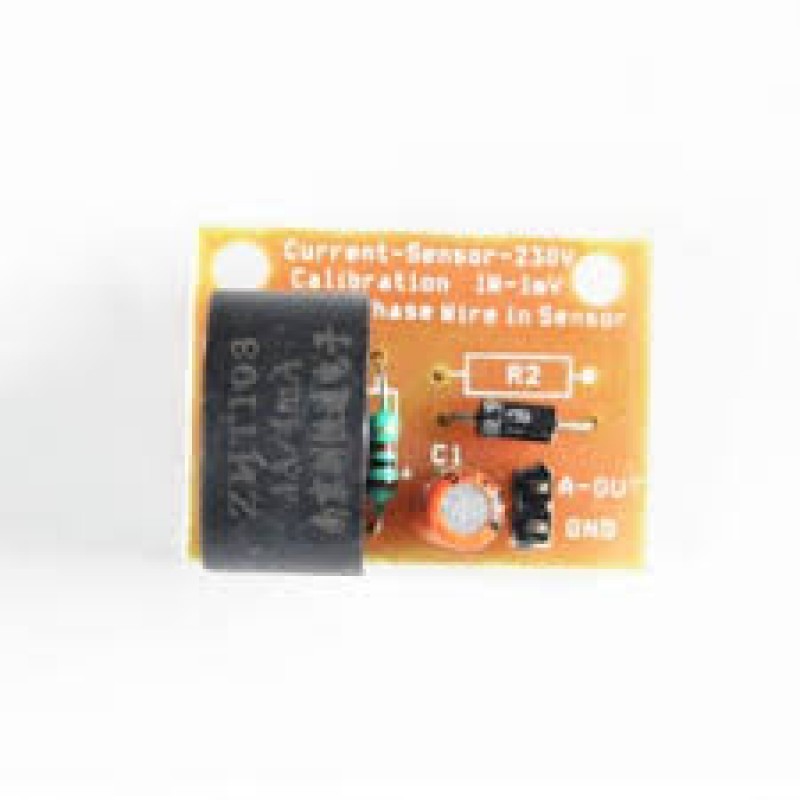

Ct1207 Current Sensor
Rs. 60.00 Rs. 69.00
- Product Code: SEN-CURRENT
- SKU -
- Availability: In Stock
- Price in reward points: 1
- For Bulk Order
9962060070
Quick support on WhatsApp (+919962060070) only between morning 11am-4pm, no call will be answered
| SPECIFICATIONS: | |
| Onboard precision micro current transformer | Onboard sampling resistor . |
| Module can be measured within 5 a alternating current, the corresponding analog | output 5 A/ 5 mA |
| Rated Primary Current at 50/60 Hz | 5:00 AM |
| Maximum Primary Current at 50/60 Hz | 20 A |
| Turns Ratio | Np:Ns = 1: 2500 |
| Current Ratio | 5A:2mA |
| Winding D.C Resistance at 20 °C | 155 Ω |
| Accuracy •@RL≤10 Ω | 2% |
| Operating Temperature | -40 to 85 °C |
| Storage Temperature | -45 to 90 °C |
| Dielectric Withstanding Voltage | 4,000 V / 1 mA / 1 sec |
| OVERVIEW: | |
| Usage/Application | Industrial |
| Part Number | ZHT103 |
| Size | 38 x 18.5 mm |
| Output Type | Analog |
| Current Detection Minimum | 0.3A AC |
| Current Detection Maximum | 5A AC |
| Sensor Output Ratio | 10001 |
PACKAGE INCLUDES:
1 PCS x Ct1207 Current Sensor
//SOURCE CODE TAKEN FROM BELOW LINK
//https://circuitdigest.com/electronic-circuits/ac-current-measurement-circuit-using-current-transformer-and-arduino
void setup(void)
{
Serial.begin(9600);
Serial.println("Getting single-ended readings from AIN0..3"); //some debug information
Serial.println("ADC Range: +/- 4.096V (1 bit = 2mV/ADS1015, 0.125mV/ADS1115)");
// The ADC input range (or gain) can be changed via the following
// functions, but be careful never to exceed VDD +0.3V max, or to
// exceed the upper and lower limits if you adjust the input range!
// Setting these values incorrectly may destroy your ADC!
// ADS1015 ADS1115
// ------- -------
// ads.setGain(GAIN_TWOTHIRDS); // 2/3x gain +/- 6.144V 1 bit = 3mV 0.1875mV (default)
ads.setGain(GAIN_ONE); // 1x gain +/- 4.096V 1 bit = 2mV 0.125mV
//ads.setGain(GAIN_TWO); // 2x gain +/- 2.048V 1 bit = 1mV 0.0625mV
// ads.setGain(GAIN_FOUR); // 4x gain +/- 1.024V 1 bit = 0.5mV 0.03125mV
// ads.setGain(GAIN_EIGHT); // 8x gain +/- 0.512V 1 bit = 0.25mV 0.015625mV
// ads.setGain(GAIN_SIXTEEN); // 16x gain +/- 0.256V 1 bit = 0.125mV 0.0078125mV
ads.begin();
}
15 days
