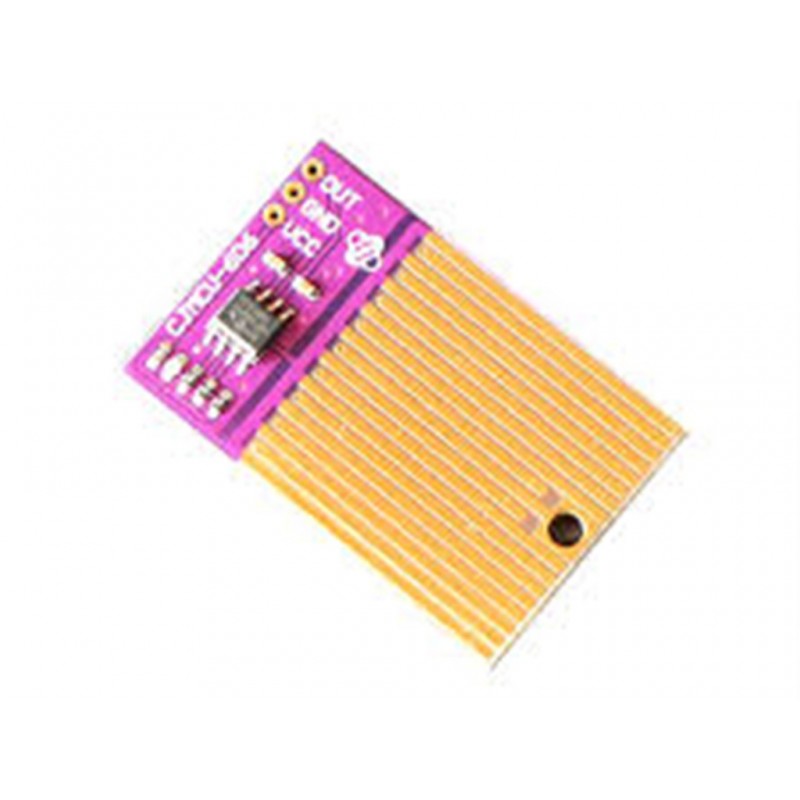

Cjmcu 606 Rainwater Detector Conductive Liquid Sensor Water Tank Pump Limit Switch
Rs. 184.00 Rs. 227.00
- Product Code: SEN-RAIN
- Availability: In Stock
- Price in reward points: 3
- For Bulk Order
9962060070
-The CJMCU-606 Rain Sensor is an electronic module specially developed to work in combination with the Arduino or other microcontrollers, to enable real-time rainfall verification.
-It works like a switch, and the working principle of this sensor is, whenever there is rain, the switch will be normally closed.
-When the rain falls on the board, then it creates a parallel resistance path to calculate through the operational amplifier.
-It has small filaments on its board, which in contact with the water droplets, sends pulses to the Arduino, then Arduino will perform the functions for which it is programmed.
-This sensor can be used as a water preservation device and this is connected to the irrigation system to shut down the system in the event of rainfall.
-It also can be used close to a window, an electric sunroof, fire beeps, lights, etc.
Features:
| -Model | CJMCU-606 |
| -Chip | MCP6061 |
| -Input Voltage | 3.3V ~ 5V |
| -Pin Number | 3 Pins |
| -Size | 40mm x 26mm x 3mm |
| SPECIFICATIONS: |
|
|
|
|
|
|
|
| |
| OVERVIEW: | |
| Brand | CJMCU |
| Power supply | 3.3V |
| 5V size | 26mm*40mm |
PACKAGE INCLUDES:
1 PCS x Cjmcu 606 Rainwater Detector Conductive Liquid Sensor Water Tank Pump Limit Switch
