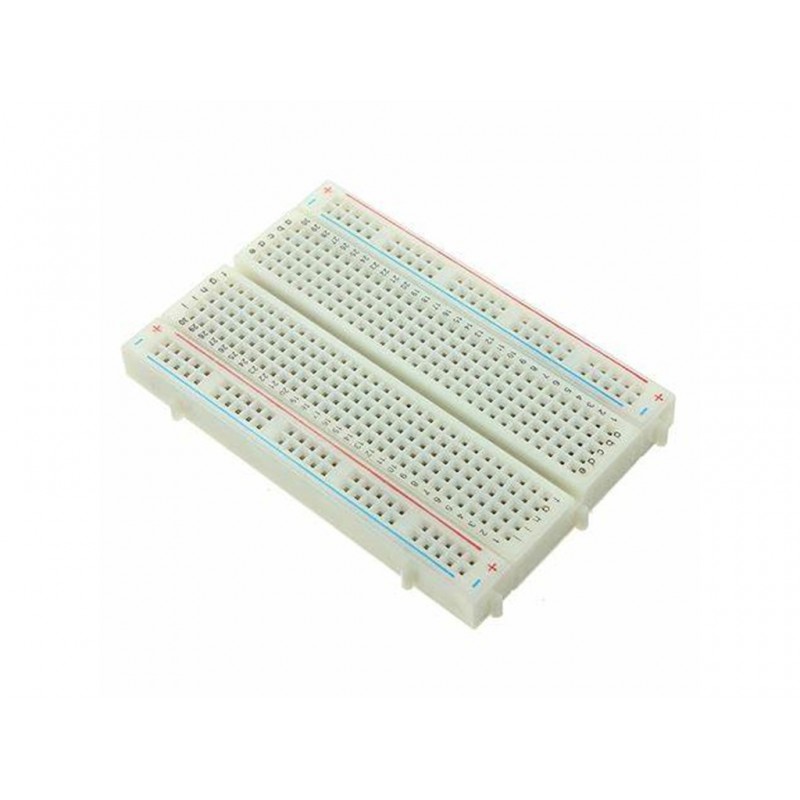

Bread Board Small 400 Ponits
Rs. 27.00 Rs. 32.00
- Product Code: TOOLS-BREAD
- SKU - SE-8802
- Availability: In Stock
- For Bulk Order
9962060070
Quick support on WhatsApp (+919962060070) only between morning 11am-4pm, no call will be answered
400 Tie Points – Solderless Breadboard is a high-quality breadboard with power lanes and printed top face for easy prototyping.
A breadboard is used to make up temporary circuits for testing or to try out an idea. No soldering is required so it is easy to change connections and replace components.
It is Reusable for fast build a prototype of an electronic circuit – will accept transistors, diodes, LEDs, resistors, capacitors and virtually all types of components – No soldering required – Can modify or revise the circuits easily Fit for jumper wire of 0.8mm diameter – Standard 2.54mm hole spacing Adhesive sheet on the backside of the board – Multiple breadboards can be spliced together too.
| SPECIFICATIONS | |
| Maximum Voltage(V) | 300 |
| Maximum Operating Current (A) | 3 – 5 |
| Allowed Wire Size (AWG) | 29 ~ 20 |
| Length (mm) | 82 |
| Width (mm) | 55 |
| Height (mm) | 10 |
| Weight (gm) | 40 |
| Shipment Weight | 0.043 kg |
| Shipment Dimensions | 9 × 6 × 1 cm |
OVERVIEW:
400 tie points
2 Power lanes, Total 100 tie points in power lanes
1 Double strip, Total 300 tie points
Perfect for Arduino shield prototyping and testing
Plastic housing, metal contact clips
PACKAGE INCLUDES:
1 PCS x Bread Board Small 400 Ponits
