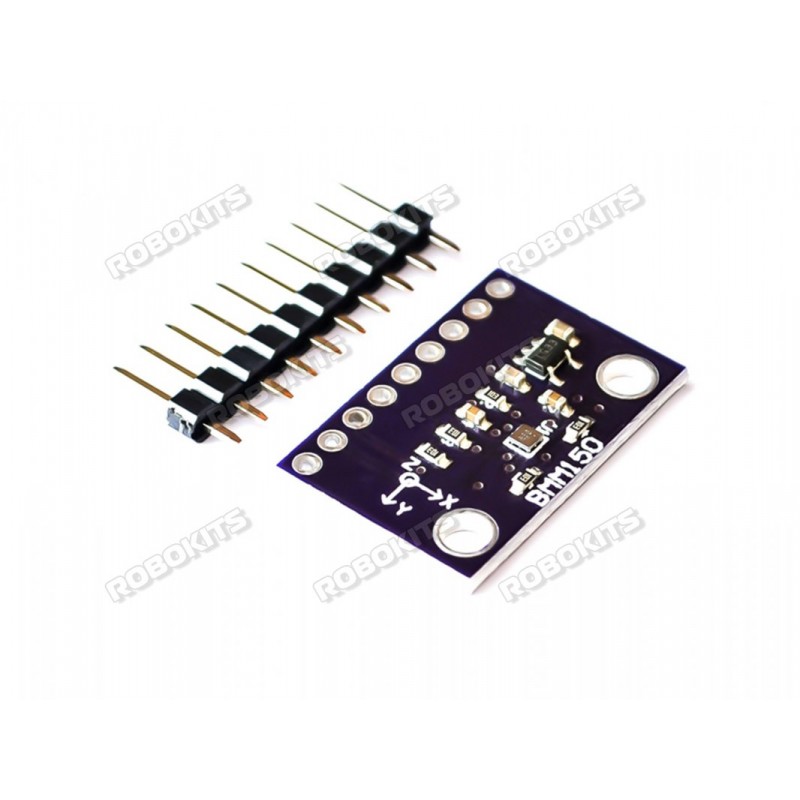

Bmm150 Magnetometer 3Axis Geomagnetic Sensor I2C/Spi Interface
Rs. 659.00 Rs. 752.00
- Product Code: SEN-MAGNOMETER
- Availability: 2-3 Days
- Price in reward points: 5
- For Bulk Order
9962060070
-BMM150 is a low power and low noise 3-axis digital geomagnetic sensor to be used in compass applications.
-The 12-pin wafer level chip scale package (WLCSP) with a footprint of 1.56 x 1.56 mm² and 0.60 mm height provides highest design flexibility to the developer of mobile devices.
-Applications like virtual reality or gaming on mobile devices such as mobile phones, tablet PCs or portable media players require 9-axis inertial sensing including magnetic heading information.
-Due to the stable performance over a large temperature range, the BMM150 is also especially suited for supporting drones in accurate heading.
| SPECIFICATION: | |
| Temperature range | |
| Digital interfaces I²C and SPI (2 interrupt pins) | (2 interrupt pins) |
| Resolution | 0.3μT |
| Supply voltage | VDD: 1.62V to 3.6V, VDDIO: 1.2V to 3.6V |
| Zero-B offset | ±50μT |
| Non-linearity | <1% FS |
| Magnetic range type | ±1300μT (x,y-axis) ±2500μT (z-axis) |
| Average current consumption | 170 μA (low power preset) 500 μA (normal mode) |
| Interrupts | New data, magnetic threshold high / low |
| OVERVIEW: | |
| Temperature range | |
| Digital interfaces I²C and SPI (2 interrupt pins) | (2 interrupt pins) |
| Resolution | 0.3μT |
| Supply voltage | VDD: 1.62V to 3.6V, VDDIO: 1.2V to 3.6V |
| Zero-B offset | ±50μT |
| Non-linearity | <1% FS |
| Magnetic range type | ±1300μT (x,y-axis) ±2500μT (z-axis) |
| Average current consumption | 170 μA (low power preset) 500 μA (normal mode) |
| Interrupts | New data, magnetic threshold high / low |
PACKAGE INCLUDES:
1 PCS x Bmm150 Magnetometer 3Axis Geomagnetic Sensor I2C/Spi Interface
