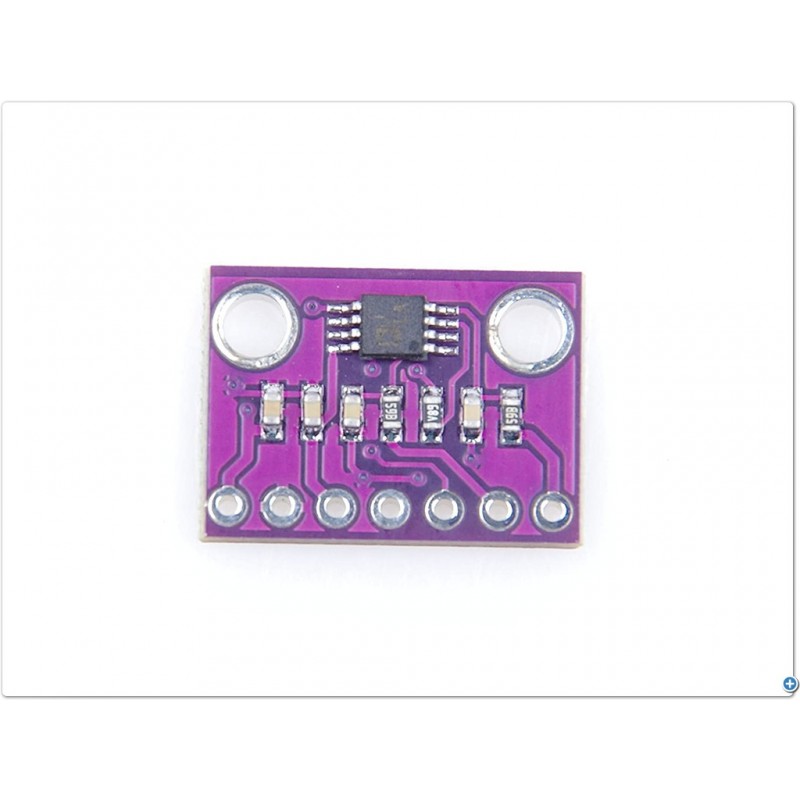

Ad8221Ar Precision Instrumentation Amplifier Module
Ad8221Ar Precision Instrumentation Amplifier Module
Ad8221Ar Precision Instrumentation Amplifier Module

Ad8221Ar Precision Instrumentation Amplifier Module

Rs. 688.00 Rs. 785.00

  • Product Code: SEN-AMP-INSTRUMENTATION
  • SKU -
  • Availability: In Stock
  • Price in reward points: 6
  • For Bulk Order 9962060070
    Quick support on WhatsApp (+919962060070) only between morning 11am-4pm, no call will be answered
-AD8821 is a gain programmable, high performance Instrumentation Amplifier from Analog devices.
-This module is a breakout board for AD8221 IC.
-The AD8221AR is a gain programmable, high-performance instrumentation amplifier with the highest common mode rejection ratio (CMRR) relative to frequency in the industry.
-Low-voltage offset, low offset drift, low gain drift, high gain accuracy, and high common-mode rejection ratio make this device an excellent choice for applications requiring optimal dc performance, such as   bridge signal conditioning.
-The CJMCU-8221 can be operated from a single or dual supply, making it ideal for applications where the input voltage is ± 10 V.
-The device is rated over the industrial temperature range of -40 ° C to + 85 ° C for all ratings. In addition, the AD8221 can operate from -40 °C to + 125 °C .
-Programmable gain gives the user design flexibility. Through a resistor, gain can be set in the range of 1 to 1000.

AD8221AR Amplifier Module Applications:
-Weigh scales
-Industrial process controls
-Bridge amplifiers
-Precision data acquisition systems
-Medical instrumentation
-Strain gages
-Transducer interfaces

SPECIFICATIONS:

-Easy to use

-Available in space-saving MSOP

-Gain set with 1 external resistor (gain range 1 to 1000)

-Wide power supply range : ±2.3V to ±18V

-Operational up to 125°C1

-Excellent AC specifications

-80 dB minimum CMRR to 10 kHz (G = 1)

-825 kHz, –3 dB bandwidth (G = 1)

-2 V/μs slew rate

-Low noise

-0.25 μV p-p input noise (0.1Hz to 10Hz)

-High accuracy dc performance (AD8221BR)

-90 dB minimum CMRR (G = 1)

-25 μV maximum input offset voltage

-0.3 μV/°C maximum input offset drift

-0.4 nA maximum input bias current

OVERVIEW:

-Easy to use

-Available in space-saving MSOP

-Gain set with 1 external resistor (gain range 1 to 1000)

-Wide power supply range : ±2.3V to ±18V

-Operational up to 125°C1

-Excellent AC specifications

-80 dB minimum CMRR to 10 kHz (G = 1)

-825 kHz, –3 dB bandwidth (G = 1)

-2 V/μs slew rate

-Low noise

-0.25 μV p-p input noise (0.1Hz to 10Hz)

-High accuracy dc performance (AD8221BR)

-90 dB minimum CMRR (G = 1)

-25 μV maximum input offset voltage

-0.3 μV/°C maximum input offset drift

-0.4 nA maximum input bias current

PACKAGE INCLUDES:

1 PCS x Ad8221Ar Precision Instrumentation Amplifier Module
