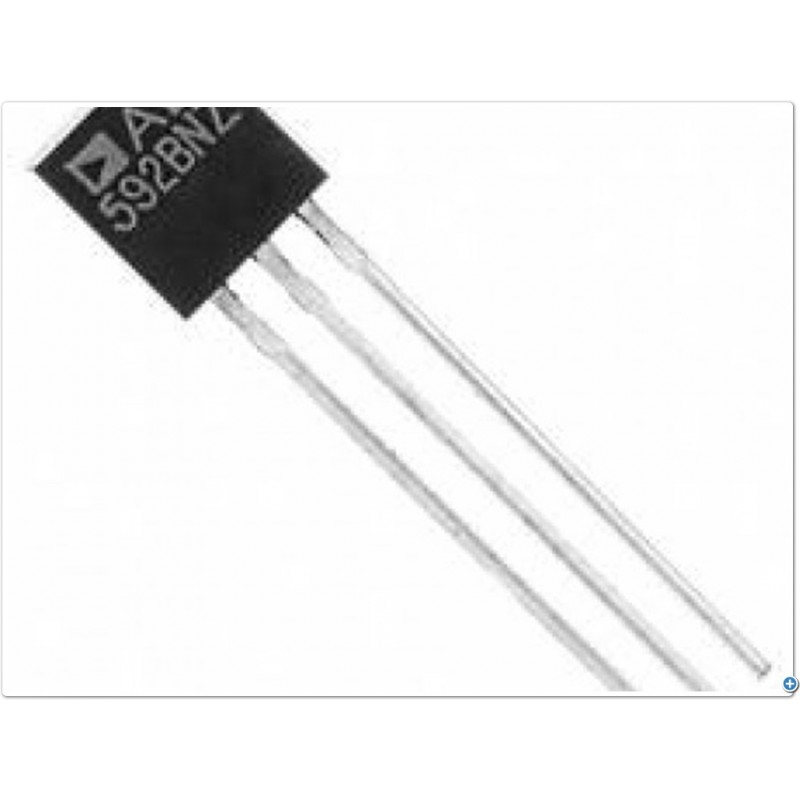

Ad592 Precision Ic Temperature Transducer
Rs. 46.00 Rs. 53.00
- Product Code: SEN-TEMP
- SKU -
- Availability: 2-3 Days
- For Bulk Order
9962060070
Quick support on WhatsApp (+919962060070) only between morning 11am-4pm, no call will be answered
-The AD592 is a two terminal monolithic integrated circuit temperature transducer that provides an output current proportional to absolute temperature.
-For a wide range of supply voltages the transducer acts as a high impedance temperature dependent current source of 1 µA/K.
-Improved design and laser wafer trimming of the IC's thin film resistors allows the AD592 to achieve absolute accuracy levels and nonlinearity errors previously unattainable at a comparable price.
-The AD592 Temperature sensor can be employed in applications between −25°C and +105°C where conventional temperature sensors (i.e., thermistor, RTD, thermocouple, diode) are currently being used. -The inherent low cost of a monolithic integrated circuit in a plastic package, combined with a low total parts count in any given application, make the AD592 the most cost effective temperature transducer currently available.
-Expensive linearization circuitry, precision voltage references, bridge components, resistance measuring circuitry and cold junction compensation are not required with the AD592.
-Typical application areas include: appliance temperature sensing, automotive temperature measurement and control, HVAC (heating/ventilating/air conditioning) system monitoring, industrial temperature control, thermocouple cold junction compensation, board-level electronics temperature diagnostics, temperature readout options in instrumentation, and temperature correction circuitry for precision electronics.
-Particularly useful in remote sensing applications, the AD592 is immune to voltage drops and voltage noise over long lines due to its high impedance current output.
-AD592s can easily be multiplexed; the signal current can be switched by a CMOS multiplexer or the supply voltage can be enabled with a tri-state logic gate.
| Features and Benefits of AD592 | |
| -High Precalibrated Accuracy | 0.5°C max @ +25°C |
| -Excellent Linearity | 0.15°C max (0°C to +70°C) |
| -Wide Operating Temperature Range | −25°C to +105°C |
| -Single Supply Operation | +4 V to +30 V |
| Excellent Repeatability and Stability: | |
| -High Level Output | 1 µA/K |
| -Two Terminal Monolithic IC | Temperature In/Current Out |
| -Minimal Self | Heating Errors |
PACKAGE INCLUDES:
1 PCS x Ad592 Precision Ic Temperature Transducer
