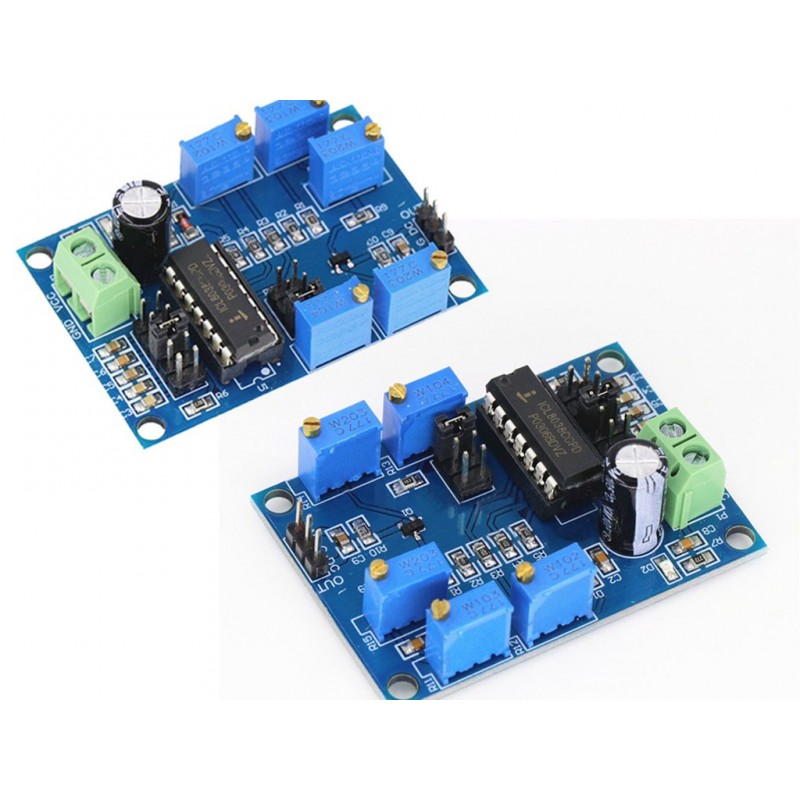

Icl8038 Medium And Low Frequency Waveform Signal Generator
Rs. 282.00 Rs. 322.00
- Product Code: TOOLS-SIGNAL
- SKU -
- Availability: In Stock
- Price in reward points: 3
- For Bulk Order
9962060070
Quick support on WhatsApp (+919962060070) only between morning 11am-4pm, no call will be answered
- ICL8038 is a precision oscillator integrated circuit with multiple waveform output.
- The frequency and duty ratio of the output waveform can also be controlled by current or resistance.
- Since the chip has frequency modulation signal input, it can be used for frequency modulation of low frequency signals.
- Low-frequency drift occurs when temperature changes, and the maximum is no more than 50ppm /℃; With sine wave, triangle wave, square wave and other functional signal output; The sinusoidal output distortion is less than 1%.
- The output of triangular wave has a high linearity of 0.1%. Work cycles vary widely, ranging from 2% to 98%; Easy to use, with minimal external requirements.
- This module is designed for a universal frequency range. It can be tuned to 5 gears and can generate low-distortion sinusoidal, triangular, square and other pulses ranging from 10Hz to 450KHz.
- Sinusoidal wave can be used for test signal, driving signal, carrier frequency signal, etc. Square wave can be used to switch signal, trigger signal and so on. Triangular waves are mainly used for scanning signals.
- Working voltage: single power DC point 12V-15V. Output waveform: sine wave, square wave, triangular wave. Frequency range: 10Hz-450KHz.
| SPECIFICATION | |
| Condition | 100% Brand New |
| Material | ABS |
| Color | as picture shown |
| Working voltage | DC 12-15V |
| Output waveform | sine wave, square wave, triangular wave |
| Frequency range | 10Hz-450KHz |
| Distortion | sinusoidal distortion of less than 1% |
| Working cycle | 20% - 98% adjustable |
| Low temperature drift | below 50ppm /°C |
| Triangular wave | with a high linearity of 0.1% |
| Operating temperature | 0-70°C |
| OVERVIEW | |
| Condition | 100% Brand New |
| Material | ABS |
| Color | as picture shown |
| Working voltage | DC 12-15V |
| Output waveform | sine wave, square wave, triangular wave |
| Frequency range | 10Hz-450KHz |
| Distortion | sinusoidal distortion of less than 1% |
| Working cycle | 20% - 98% adjustable |
| Low temperature drift | below 50ppm /°C |
| Triangular wave | with a high linearity of 0.1% |
| Operating temperature | 0-70°C |
PACKAGE INCLUDES:
1 PCS x Icl8038 Medium And Low Frequency Waveform Signal Generator
15 days
