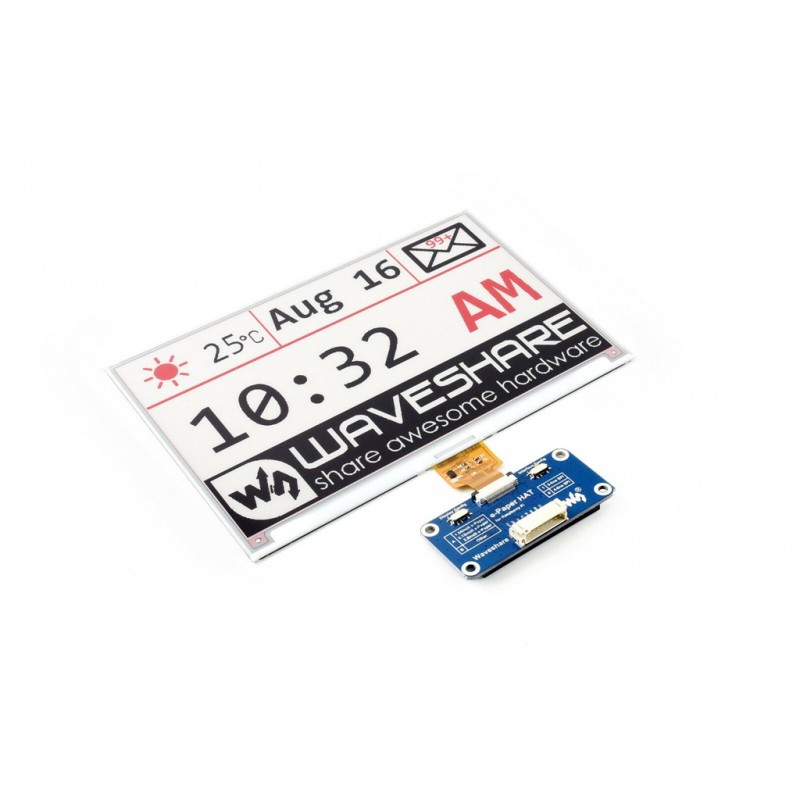

7.5 Inch E Ink Paper Display Hat For Raspberry Pi
Rs. 5,094.00 Rs. 6,266.00
- Product Code: DISPLAY-EINK
- Availability: 2-3 Days
- Price in reward points: 53
- For Bulk Order
9962060070
This is an E-Ink show HAT for Raspberry Pi, 7.5-inch, 640×384 resolution, with an embedded controller, speaking thru SPI interface. This display shows the records at the display as equal as it seen on published paper.
There isn't any backlight so it may preserve displaying ultimate content for a long term even if the strength is down. As these shows don't have any backlight panels and it doesn’t need a continuous energy deliver to display the (static data with periodic intervals) information on the screen,
The Display it has a remarkable advantage of extremely-low power intake. Also, it has a huge viewing perspective, top notch viewing effect beneath sunlight, Basically electricity to the show is only required for refreshing. For connecting with controller forums like Raspberry Pi/Arduino/Nucleo, and so on.. SPI interface can be used.
Features:
-No backlight keeps displaying last content for a long time even when power is down
-Ultra low power consumption, basically power is only required for refreshing
-Compatible with Raspberry Pi 2B/3B/3B+/Zero/Zero W
-SPI interface, for connecting with other controller boards like Raspberry/Arduino/Nucleo, etc.
-Onboard voltage translator, compatible with 3.3V/5V MCUs
-Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
| SPECIFICATION: | |
| Operating Voltage(VDC) | 3.3V~5V |
| Dot Pitch | 0.255 × 0.255 |
| Grey level | 2 |
| Display Color | Black and White |
| Display Resolution | 640×384 |
| Viewing Angle | >170° |
| Interface | 3-wire SPI, 4-wire SPI |
| Full Refresh Time | 6s |
| Refresh Power | 38mW(typ.) |
| Standby Power | <0.017mW |
| Dimensions in mm (LxWxH) | 171 x 111 x 2 |
| Weight (gm) | 68 |
| Shipment Dimensions | 20 × 12 × 2 cm" |
OVERVIEW:
-Display Resolution: 640×384
-No backlight keeps displaying last content for a long time even when power is down
-Ultra low power consumption, basically power is only required for refreshing
-Compatible with Raspberry Pi 2B/3B/3B+/Zero/Zero W
-SPI interface, for connecting with other controller boards like Raspberry/Arduino/Nucleo, etc.
-Onboard voltage translator, compatible with 3.3V/5V MCUs
PACKAGE INCLUDES:
1 PCS x 7.5 Inch E Ink Paper Display Hat For Raspberry Pi
1 PCS x e-paper Hat for Raspberry Pi to e-paper Adapter
1 PCS x Interfacing Cable
1 PCS x Nut-Bolt and Spacers set
Note: No Raspberry Pi is included in Package
