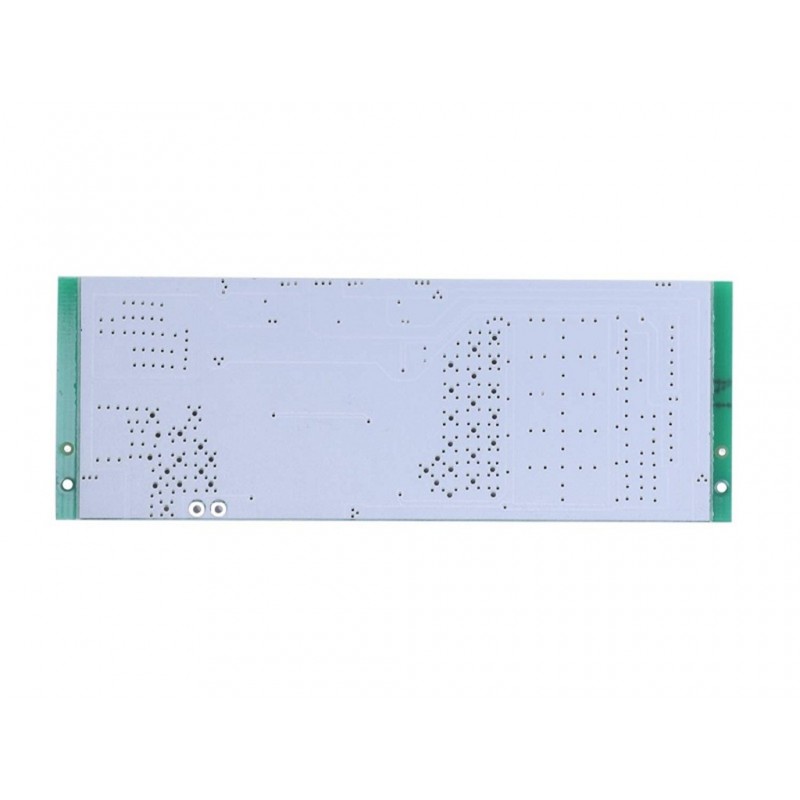

6 Series 40A 18650 Lithium Battery Protection Board
Rs. 400.00 Rs. 456.00
- Product Code: BATTERYPROTECTION
- Availability: 2-3 Days
- Price in reward points: 4
- For Bulk Order
9962060070
- BMS (Battery Management System) – a battery management system that is designed to monitor the status of batteries, control the process of charging/discharging the battery, etc.
- Six batteries (18650) can be connected simultaneously to this charge-discharge controller module.
- The module has protection against short circuit, overcharge and over-discharge.
- One of the functions of the charge controller is to turn off the power supply for the batteries when the maximum capacity of at least onbattery is reached.
- This BMS controller is designed for more than 30,000 hours of operation.
- The maximum allowable current is 40 A.If the maximum permissible value of the supply voltage is exceeded, the charge controller activates the “protection” mode.
- In order to restore the module, it is necessary to re-apply voltage to the input of the BMS board or wait a while until the charge controller automatically disables protection.
Features:
-Small size designed for a four-cell battery pack.
-Simple and convenient circuit for easy connections
-Over-charge/Over-discharge Protection.
| SPECIFICATION | |
| Working current | ≤40uA |
| Maximum Discharge Current | 40A |
| Instantaneous Discharge Current | 70A |
| Charging voltage | 25.5V |
| Maximum charging current | 40A |
| Temperature range | -30/+80°C |
| Overcharge detection voltage | 4.25±0.025V |
| Overcharge release voltage | 4.15±0.05V |
| Battery Balance Detection Voltage | 4.125±0.025V |
| Over discharge detection voltage | 2.7 ± 0.1V |
| Over discharge Detection Delay | 1.0±0.5S |
| Over discharge release voltage | 3.0±0.1V |
| Overcurrent detection voltage | 100mV |
| Overcurrent Detection Delay | 1±0.3S |
| Overcurrent protection current | 75±5A |
| OVERVIEW | |
| Maximum discharge current | 40A |
| Instantaneous discharge current | 70A |
| Charging voltage | 25.5V |
| Maximum charging current | 40A |
| Overcharge detection voltage | 4.25±0.025V |
| Overcharge protection delay | 1.0±0.5S |
| Overcharge release voltage | 4.15±0.05V |
| Battery balance detection voltage | 4.125±0.025V |
| Battery balance release voltage | 4.125±0.05V |
| Battery balance current | 41±5mA |
| Working current | ≤40uA |
PACKAGE INCLUDES:
1 PCS x 6S 40A Battery Protection Board For 18650 Li-Ion Lithium Battery Cell
