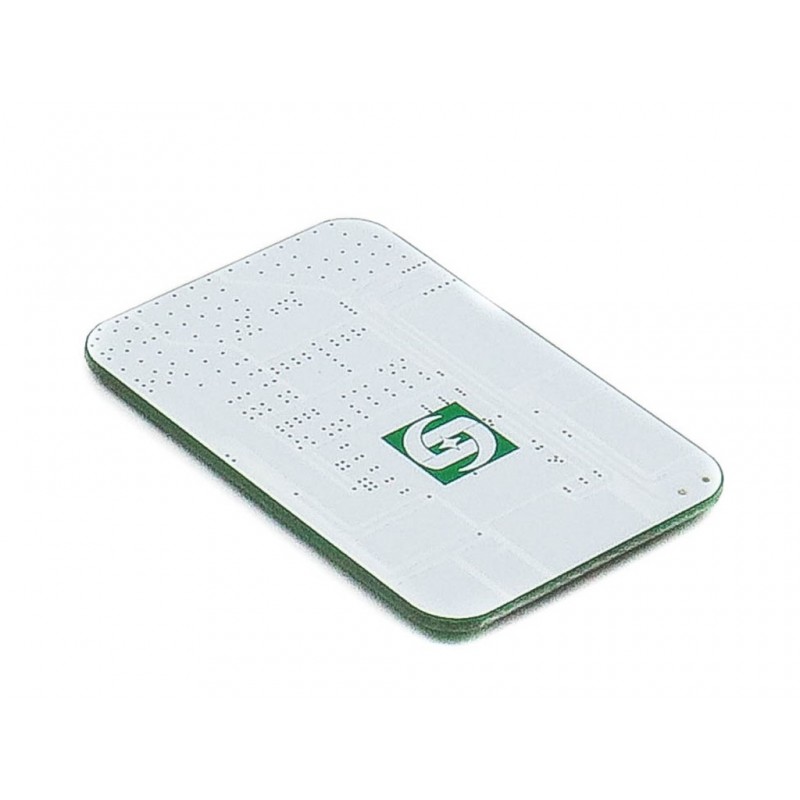

6 Series 20A Li Ion Lithium Battery 24V 18650 Charger Protection Board Module
Rs. 184.00 Rs. 210.00
- Product Code: BATTERYPROTECTION
- Availability: 2-3 Days
- Price in reward points: 2
- For Bulk Order
9962060070
- 6S 20 A Li-ion Lithium Battery 24V 18650 Charger Protection Board Module is a small PCB mount Li-ion Lithium Battery charger protection module.
- This small battery charger protection module comes with various features like Short circuit protection, Overcharge protection, Over-discharge protection, Overcurrent protection.
- It is very easy to install and convenient to use in all your DIY portable projects.
- provides a different variety of the charger protection board
Features:
-Battery protection board is mainly for the rechargeable battery (generally refer to as lithium battery) to protect the role of the integrated circuit board.
-Lithium battery (rechargeable) needs protection, which is determined by its own characteristics.
-As the material of the lithium battery itself determines that it cannot overcharge, overflowing, short-circuiting, and super high temperature.
-Charging and discharging of lithium battery will always follow a protective plate with a sampling resistance and a current safety device.
| Instantaneous discharge current | 25A |
| Charging voltage | 25.5V |
| Charging current | 20 A (MAX) |
| Overcharge detection voltage | 4.28 ± 0.05V |
| Overcharge protection delay | 0.1S |
| Over discharge detection voltage | 2.55 ± 0.08V |
| Overcharge release voltage | 4.08 ± 0.05V |
| Over discharge detection delay | 0.1S |
| The over discharge release voltage | 2.9 ± 0.1V |
| Overcurrent detection voltage | 150mV |
| Overcurrent detection delay | 9MS |
| The Overcurrent protection current | 30 ± 3A |
| Overcurrent protection release condition | Disconnect the load |
| Short circuit detection delay | 250uS |
| Short circuit protection Release condition | disconnect negative open |
| Main circuit conduction resistance | ≤20mΩ |
| Working current | ≤30uA |
| Sleep current (battery over discharge) | ≤10uA |
| Temperature range | -30 / + 80 ℃ |
| Connections | |
| MB | The Common connection point between the batteries. |
| B+ | Battery V+ Positive. |
| B- | Battery V- Negative. |
| P+ | Charging V+. |
| P- | Charging V-. |
| SPECIFICATION | |
| Input Voltage | (V)25.5 – 26 V |
| Operating Temperature (°C) | -30 to 80 |
| Over-Current Protection (A) | Yes |
| Under-Voltage Protection (V) | Yes |
| Internal Resistance(Ω) | <20m |
| Maximum Operating Current (A) | 15 |
| OVERVIEW | |
| Charging voltage | 25.5V |
| Charging current | 20A (MAX) |
| Overcharge detection voltage | 4.28 ± 0.05V |
| Overcharge protection delay | 0.1S |
| Overcharge release voltage | 4.08 ± 0.05V |
| Over discharge detection voltage | 2.55 ± 0.08V |
| Over discharge detection delay | 0.1S |
| The over discharge release voltage | 2.9 ± 0.1V |
PACKAGE INCLUDES:
1 PCS x 6S 20A 24V Charger Protection Board Module For 18650 Li-Ion Lithium Battery Cell
