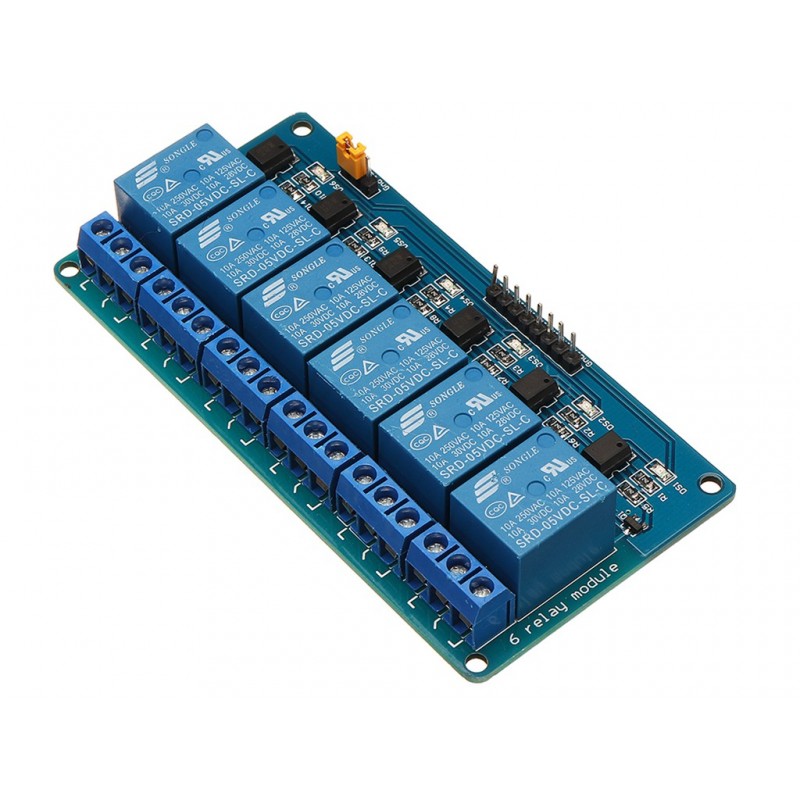

5V 6 Channel Low Level Relay Module With Light Coupling

Rs. 264.00 Rs. 301.00

  • Product Code: RELAY
  • SKU -
  • Availability: In Stock
  • Price in reward points: 3
  • For Bulk Order 9962060070
    Quick support on WhatsApp (+919962060070) only between morning 11am-4pm, no call will be answered
  • It is a 5V 6 Channel Low-Level Relay Module with Light Coupling.
  • The relay normally open interface maximum load: AC 250V/10A, DC 30V/10A.
  • With optocoupler isolation, strong drive capability, stable performance; trigger current 5mA, module working voltage: DC 5V.
  • Each channel of the module can be triggered by a jumper to set a high level or a low level.
  • Fault-tolerant design, even if the control line is disconnected, the relay will not move.
  • With status indicator: power (green), 6-channel relay status indicator (red). All module size interfaces can be directly connected through the terminal block, which is convenient and practical.

Features:
-6-way relay output module contact capacity is 10A 250V.
-input IN1, IN2, IN3, IN4, IN5, IN6 signal, a low level is effective.
-Using single-chip design, reliable performance, strong anti-interference, no false triggering, superior performance.
-The trigger terminal has optocoupler isolation, the independent external power supply can trigger completely isolated.
-Each relay has an activity indicator light. With 4 fixed bolt holes, easy installation.
-Support all SCM control. It is applicable to the industrial sector, PLC control and home intelligent control.


SPECIFICATION
Operating Voltage (VDC)      3.3 ~ 5
Supply Current (A)           20mA
Trigger Voltage (VDC)        5
Switching Voltage (VAC)      250@10A
Switching Voltage (VDC)      30@10A
Operating Temperature (°C)   -40 to 85
Storage condition (℃)        – 65 to 125

OVERVIEW:

-6-way relay output module contact capacity is 10A 250V.

-input IN1, IN2, IN3, IN4, IN5, IN6 signal, a low level is effective.

-Using single-chip design, reliable performance, strong anti-interference, no false triggering, superior performance.

-The trigger terminal has optocoupler isolation, the independent external power supply can trigger completely isolated.

-Each relay has an activity indicator light. With 4 fixed bolt holes, easy installation.

-Support all SCM control. It is applicable to the industrial sector, PLC control and home intelligent control.

PACKAGE INCLUDES:

1 PCS x 6 Channel 5V Relay Module With Optocoppler For Arduino Pic Avr Dsp Arm
