5V 2A Boost Output For Single Lithium Cell 3.7 / 4.2V Charging Discharging Protection Module
Rs. 51.00 Rs. 59.00
- Product Code: CHARGING
- Availability: In Stock
- Price in reward points: 1
- For Bulk Order
9962060070

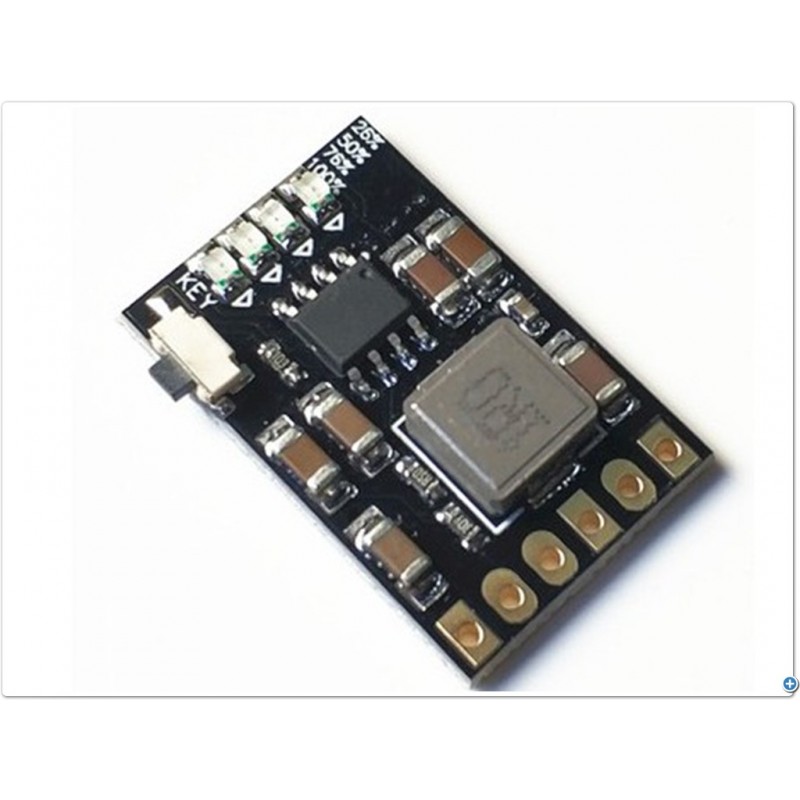

This is a boost circuit to get 5V 2A output from a single Lithium Ion cell ( 3.7V/4.2V). It also has a harge and discharge protection function, so it will prevent the cell from being over charged or over discharged.
Features:
-Trigger mode: low level trigger (ground)
-The module comes with a lithium battery protection function (the lithium battery does not need to have a protection board, it does not matter if it has a protection board)
-Over-current protection (OCP) / Overvoltage protection (OVP) / Short Circuit Protection (SCP) / Over-temperature protection (OTP)
Application:
This module protects the Lithium Batteries from over charge / discharge and short circuit.
Pin Description:
| VIN | Charge port positive input + |
| GND | Charger Negative Input - |
| BAT | Lithium Battery + |
| GND | Lithium Battery - |
| GND | Output negative output - |
| VOUT | Output Positive Output + |
| KEY | Output Enable Trigger Port (Low Pulse Trigger) |
| SPECIFICATION | |
| Dimension | 25 * 16 * 4mm |
| Charging voltage | DC 4.5V-5.5V (DC 5V recommended) |
| Charging current | 0-2.1A |
| Charging quiescent current | 100uA |
| Full voltage | 4.2V+-1%. |
| Discharge current | 0-2.4A; |
| Discharge quiescent current | 50uA |
| Discharge efficiency | up to 96% |
| Output voltage | 5V |
| Output current | 0-2.4A; |
| Ambient temperature | -20 degree to +85 degree |
OVERVIEW:
-Charge and Discharge Protection
-Low level trigger
-Short Circuit Protection
PACKAGE INCLUDES:
1 PCS x 5V 2A Boost Output For Single Lithium Cell 3.7 / 4.2V Charging Discharging Protection Module
15 days
