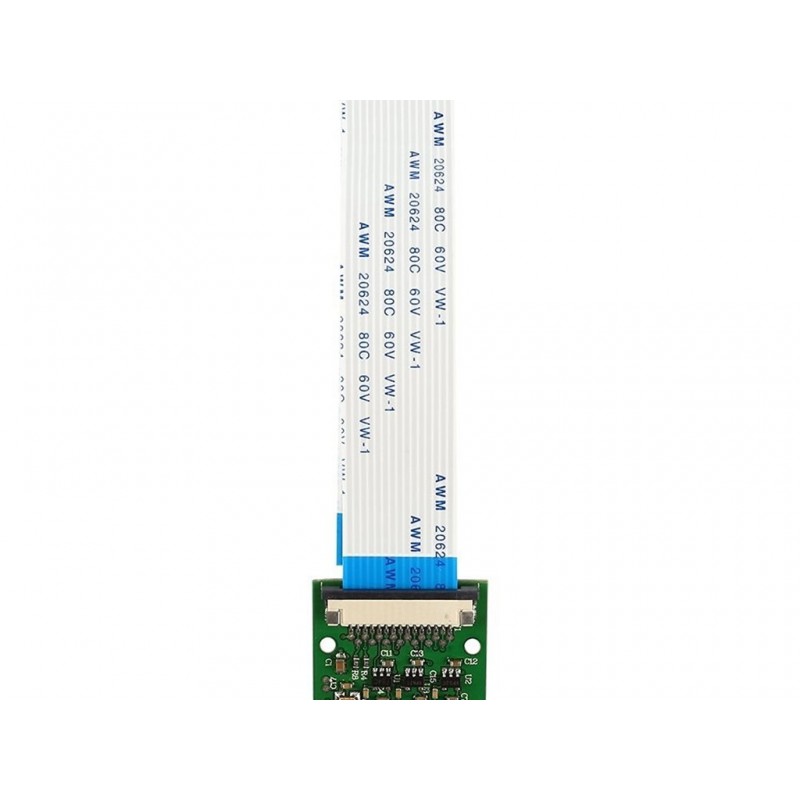

5Mp Raspberry Pi 3 Model B Camera Module Rev 1.3 With Cable
Rs. 219.00 Rs. 252.00
- Product Code: PI-CAM
- SKU -
- Availability: In Stock
- Price in reward points: 3
- For Bulk Order
9962060070
Quick support on WhatsApp (+919962060070) only between morning 11am-4pm, no call will be answered
-The 5MP Raspberry Pi 3 Model B Camera Module Rev 1.3 with Cable equips flexible cable for attaching with Raspberry Pi 3 Model B.
-The 5MP camera module is perfect for small Raspberry Pi initiatives that have little or no space allowance simply boot up the modern day model of Raspbian and you are good to go!!!
-The high-definition 5MP camera grants brilliant images however can also shoot video, best for drones or a CCTV task.
-The light-weight digicam board allows for it's miles beneficial in greater realistic roles, which include a hidden digicam, even a camera for a Pi-cellphone.
-This Raspberry Pi Camera Module is a customized upload-on for Raspberry Pi.
-It attaches to Raspberry Pi via way of one of the two small sockets on the board top surface.
-This interface makes use of the devoted CSI interface, therefore it's miles designed specially for interfacing to cameras.
-The CSI bus is capable of extremely excessive records fees, and it solely incorporates pixel records.
-This Raspberry Pi Camera Module is a custom designed add-on for Raspberry Pi.
-It attaches to Raspberry Pi by way of one of the two small sockets on the board upper surface.
-This interface uses the dedicated CSI interface, therefore it is designed especially for interfacing to cameras.
-The CSI bus is capable of extremely high data rates, and it exclusively carries pixel data.
-No adapters required! This camera will plug directly into the Raspberry Pi 3 Model B camera port!
Hardware connection:
-Soft cable, 90-degree vertical connector, HDMI port next to it.
-When connecting the contact side facing the HDMI interface.
-Tear protective film on the lens
-Bare boards, pay attention to ESD damage, beware of static electricity!
Software connection:
-RPi firmware and raspi-config has been updated to the camera, do an apt-get update; apt-get upgrade;
-Raspi-config, select the camera, start RPi firmware camera driver, and then restart
-Using the command-line program raspivid and raspistill operate a camera to capture video clips or images
-To capture video clips need to play with MPlayer
-How will the data through the network camera live broadcast out:
-By nc command (ncat – Concatenate and redirect sockets) of the input data of the camera, directly to the output ports of the network redirection.
| SPECIFICATION | |
| Resolution | 5 MP |
| Lens Focus | Fixed Focus |
| Image Size(Pixels) | 2592×1944 |
| Interface Type | CSI(Camera Serial Interface) |
| Sensors | Omnivision 5647 fixed-focus |
| Aperture | 2.9 |
| Focal Length | 3.29 |
| FOV | 72.4° |
| OVERVIEW | |
| Resolution | 5 MP |
| Interface Type | CSI(Camera Serial Interface) |
| Dimensions | 25x23x8 (LxWxH) mm |
| Supported Video Formats | 1080p @ 30fps, 720p @ 60fps and 640x480p 60/90 video |
| Fully Compatible with Raspberry Pi | 3 Model B. |
| Plug-n-Play camera for Raspberry Pi | 3 Model B. |
PACKAGE INCLUDES:
1 PCS x 5Mp Raspberry Pi 3 Model B Camera Module Rev 1.3
