24V 4 Channel Relay Module (With Light Coupling)
Rs. 159.00 Rs. 182.00
- Product Code: RELAY
- SKU - SE-6001
- Availability: In Stock
- Price in reward points: 2
- For Bulk Order
9962060070
Quick support on WhatsApp (+919962060070) only between morning 11am-4pm, no call will be answered

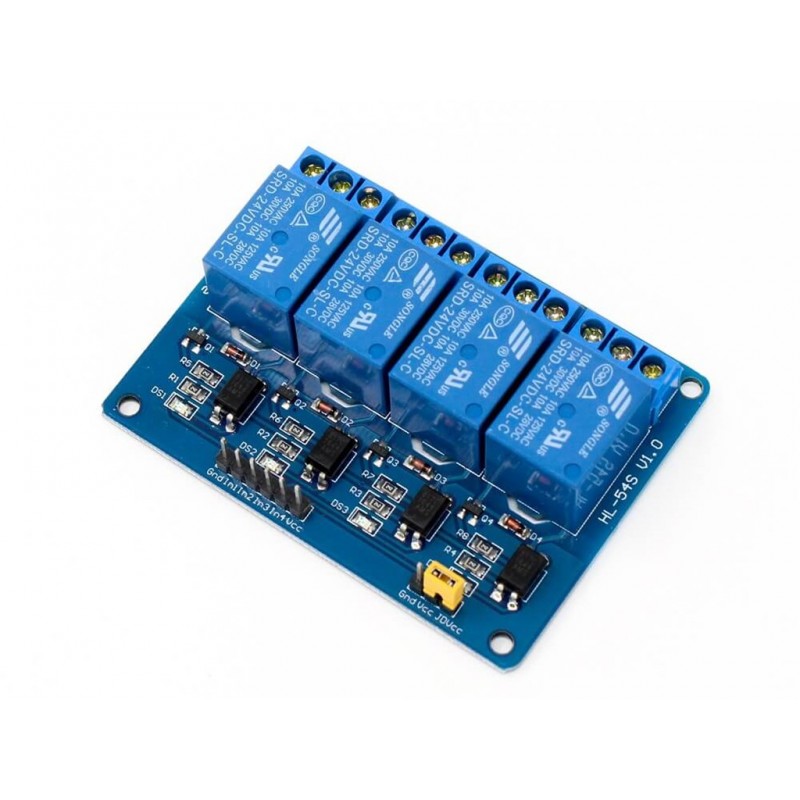

- This 4 Road/Channel Relay Module (with light coupling) 24V module meets the safety standard as control areas and load area have the isolation groove. Optical coupling isolation module.
- The triggering of the 4 Road/Channel Relay Module is reliable, more stable. The double FR–4 circuit board design, high-end SMT process. It has power and relay operation instructions. Relays terminals (C, NC, NO) are accessible through screw terminals which makes wiring up the board very easy.
- The inputs of the 4 Channel 24V Relay Module are isolated to protect any delicate control circuitry. A wide range of microcontrollers such as Arduino, AVR, PIC, ARM, and so on can control it.
- The use of such high-voltage relay eliminates the risk of heating up of the relay as electromechanical relay limit the current consumption in accordance with a voltage rating.
Module interface:
-The positive (according to the relay voltage VCC: connect power supply)
-GND: connect power negative
-IN1: relay module (effective) high-level trigger signal trigger end
-IN2: relay module (effective) high-level trigger signal trigger end
-IN3: relay module (effective) high-level trigger signal trigger end
-IN4: relay module (effective) high-level trigger signal trigger end
-Meaning of High level and Low-level
-High-level trigger refers to using the anode voltage at the VCC connection way of a trigger and triggers the end when the trigger side has a positive voltage or to trigger voltage when the relay is off.
-Low-level trigger refers to using the negative voltage at the GND connection way of a trigger and triggers the end when the trigger side has 0 v low voltage or voltage to can trigger, the relay is off.
Features:
- Equipped with high-current relay 10A@250VAC / 10A@30VDC
- It can control both AC and DC appliances such as Solenoids, Motors, lights, fans, etc
- High-quality screw terminals (Terminal Block) provided (C, NC, NO) for quick and easy connection
- A freewheeling diode to protect your microcontroller
- Input Signal Pin can be connected to Burg stick for easy accessibility
- LED status indicators to indicate the relay ON/OFF status
- Mounting holes provided
- Signal input with a high-level signal, the common and often start conduction;
- The relay can directly control all kinds of equipment and load;
- One often opened a normally closed contact;
- Blue KF301 terminal line more convenient.
| SPECIFICATION | |
| Channel | 4 |
| Trigger Voltage (VDC) | 24 |
| Trigger Current (mA) | 20 |
| Switching Voltage (VAC) | 250@10A |
| Switching Voltage (VDC) | 30@10A |
OVERVIEW:
-Operating Voltage: 24V DC
-Two separate LEDs for On/Off indication of the Relay
-Triggering input voltage 3.3V – 5V 4)
-Back EMF protection
-Equipped with high-current relay 10A@250VAC / 10A@30VDC
-It can control both AC and DC appliances such as Solenoids, Motors, lights, fans, etc
-High-quality screw terminals (Terminal Block) provided (C, NC, NO) for quick and easy connection
-Freewheeling diode to protect your microcontroller
-Input Signal Pin connected to Burg stick for easy accessibility
-Mounting holes provided
PACKAGE INCLUDES:
1 PCS x 4 Channel 24V Relay Module With Optocoppler For Arduino Pic Avr Dsp Arm
