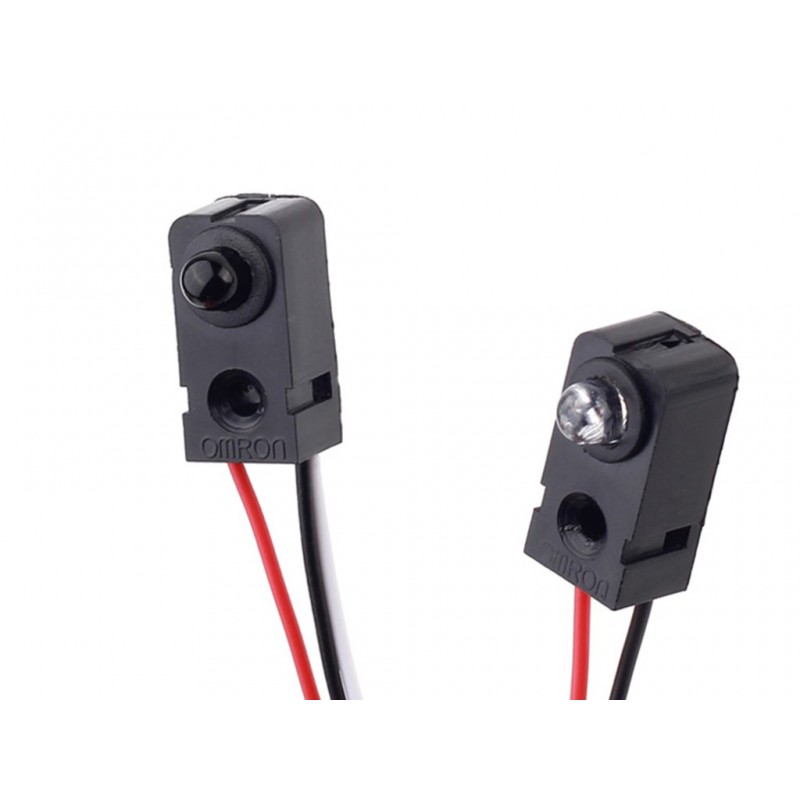

300Mm Infrared Shooting Sensor
Rs. 840.00 Rs. 1,008.00
- Product Code: SEN-SPEED
- Availability: In Stock
- Price in reward points: 4
- For Bulk Order
9962060070
-This sensor has components.
-The transmitting component has crimson cord and black cord.
-The crimson cord is 5V +.
-The black twine is 5V-.
-The receiving part has 3 wires.
-The white twine is sign.
-You can use this module to matter goods at product line or anti-theft system
| SPECIFICATIONS: | |
| -Voltage | 5V |
| -Current | 5mA |
| -Distance | 0 ~ 300mm |
| -Weight | 6g |
| -responsive time | 1ms |
| Technical details: | |
| -Dimensions | 50mm x50mm x10mm |
| -Weight | G.W 6g |
| -Battery | Exclude |
| OVERVIEW: | |
| Sensing Distance | Approx 25cm / 10" |
| Power Voltage | 3.3 - 5.5VDC |
| Emitter Current Draw | 10mA @ 3.3V, 20mA @ 5V |
| Output Current Capability of receiver | 100mA sink |
| Transmitter/Receiver LED Angle | 10° |
| Response Time | <2 ms |
| Dimensions | 20mm x 10mm x 8mm / 0.8" x 0.4" x 0.3" |
| Cable Length | 234mm / 9.2" |
| Weight (of each half) | ~3g |
PACKAGE INCLUDES:
1 PCS x 300Mm Infrared Shooting Sensor
