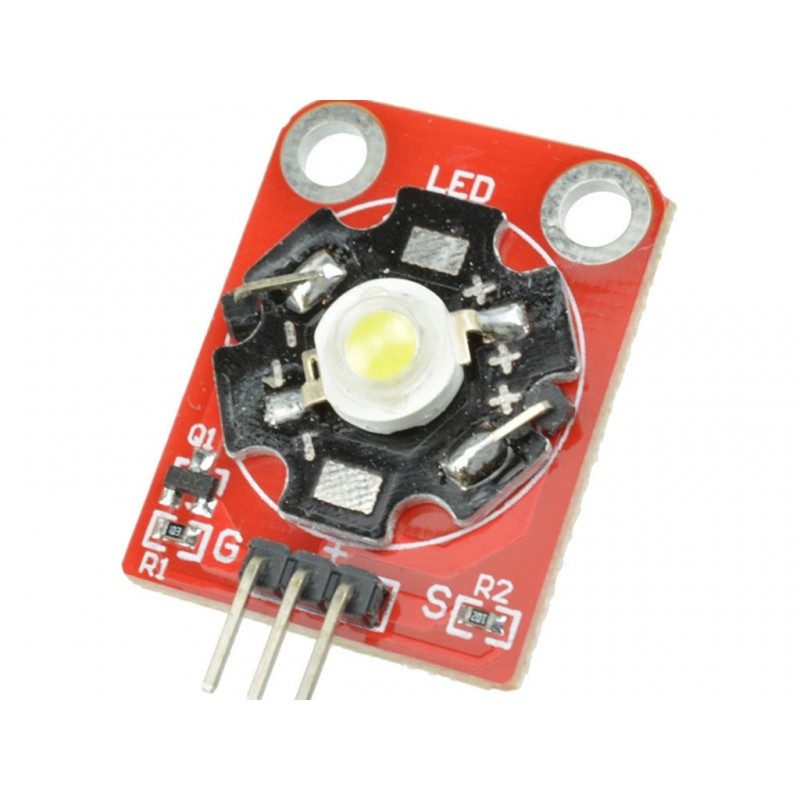

3 Watt Led Module

Rs. 68.00 Rs. 82.00

  • Product Code: SEN-LED
  • SKU -
  • Availability: In Stock
  • Price in reward points: 1
  • For Bulk Order 9962060070
    Quick support on WhatsApp (+919962060070) only between morning 11am-4pm, no call will be answered
-Now create vivid mild initiatives with easy digital manipulate the usage of this clean to apply  3 watt LED module.
-This is a groovy (gets warm!!)  smooth to apply three watt LED module with in-built motive force transistor so you do not must use and external driver to control it.
-The light can Be turned ON/OFF through any pin of the Arduino moreover the usage of PWM you could even manage its intensity.
-This LED Module also can be used with different Microcontrollers and even with Raspberry Pi.

Features of 3 Watt white LED MODULE
Color temperature : Warm White 3000-3200K / white 6000-6500K
Forward current : 700 ma
Luminous flux : White 180-200LM (lumens)
Forward voltage : 3.3 - 3.6 V
Reverse voltage : 5 Volts
Power : 3 Watts
Viewing angle : 180°
Working temperature : -20° to 60°
Storage temperature : 20° to 60°


SPECIFICATIONS:
Color temperature    Warm White 3000-3200K / white 6000-6500K
Forward current      700 ma
Luminous flux        White 180-200LM (lumens)
Forward voltage      3.3 - 3.6 V
Reverse voltage      5 Volts
Power                3 Watts
Viewing angle        180°
Working temperature  -20° to 60°
Storage temperature  20° to 60°

OVERVIEW:

-Highest flux per LED family in the world

-Very long operating life (up to 100k hours)

-Available in Red, Yellow, Green, Blue, White

-Lambertian radiation pattern

-More energy efficient than incandescent and most halogen lamps

-Low voltage DC operated

-Cool beam, safe to the touch

-Fully dimmable

-No UV

-Superior ESD protection

-lower Rth 3W Blue LED

-RoHS compliant — Lead-free

-Instant light (less than 100ns )

PACKAGE INCLUDES:

1 PCS x 3 Watt Led Module


/*SOURCE CODE TAKEN FROM BELOW LINK

https://arduinoinfo.mywikis.net/wiki/SimpleStrobe



YourDuinoStarter Example: Controllable Time Strobe LED V3 "SpinnerStrobe"

  - WHAT IT DOES: Flashes an LED with variable timing set by a potentiometer

   - Can "stop" motion of rotating wheels, fans etc.

   - Works best with a High Output LED like this:

   http://yourduino.com/sunshop2/index.php?l=product_detail&p=458

   - Can tell you the "RPM" of a device with 1, 2 or 3 "legs"

  - INFO: See https://arduinoinfo.mywikis.net/wiki/SimpleStrobe

  - SEE the comments after "//" on each line below

  - CONNECTIONS:

   - LED: Pin 13

   - Potentiometer: Pin A2

  - V1.06 05/31/2015

   Questions: terry@yourduino.com */


/*-----( Declare Pin Numbers )-----*/


#define potentiometerPin 2   // Pot connected to ANALOG Pin 2 will control strobe speed.

#define ledPin           13  // Same as the small built-in LED, also use for separate bright LED

#define otherLedPin      12  // Optional for more LEDs, not-so-bright LEDs


/*-----( Declare Constant Values )-----*/


// Set the minimum delay between flashes in milliseconds (thousandths of a second)

#define minDelay  1   // 1/1000 of a second


#define maxDelay  500  //SO: That's 200/1000 right? 1/5 of a second. 5 flashes per second.


// How long should the each flash be?

#define onTime  500    //SO: 500/1000000 hmm.. reduce fraction: .5/1000  1/2 of 1/1000 of a second


/*-----( Declare Variables )-----*/


int potPosition ;  // Value from analogRead of the pot.  Values from 0..1023

int strobeDelay ;  // How long between flashes? Changed by Pot position


void setup()   /****** SETUP: RUNS ONCE AT THE BEGINNING ******/

{

  Serial.begin(115200);          // Start the serial port (Watch on serial monitor)

  pinMode(ledPin,      OUTPUT); // Set up ledPins as an output.

  pinMode(otherLedPin, OUTPUT);

  Serial.println("START Strobe for Fidgit Spinner etc.");

}//--(end setup )---



void loop()   /****** LOOP: RUNS CONSTANTLY ******/

{

  potPosition = analogRead(potentiometerPin);  // Read the pot position


  // convert the 0 to 1023 range we get from analogRead, into our strobe delay range of 1 to 200

  strobeDelay = map(potPosition, 0, 1023, maxDelay, minDelay); // Clockwise is faster??

  Serial.print("StrobeDelay(Milliseconds) = ");

  Serial.print(strobeDelay);

  Serial.print("  Revolutions per second) = ");

  Serial.print(1000 / strobeDelay);

  Serial.print("  Revolutions per minute) = ");

  Serial.println(60 * (1000 / strobeDelay));


  /*---( Blink the LED ON and OFF )-----*/

  for (int i = 0; i < 10; i++)

  {

    digitalWrite(ledPin,      HIGH); // Switch the ledPin to HIGH, turn it on!

    digitalWrite(otherLedPin, HIGH); // Switch the ledPin to HIGH, turn it on!

    delayMicroseconds(onTime); // Delay while on, for onTime.

    digitalWrite(ledPin,      LOW); // Switch the ledPin to LOW, turn if off!

    digitalWrite(otherLedPin, LOW); // Switch the ledPin to LOW, turn if off!

    delay(strobeDelay); // Delay while off, for strobeDelay

  }

}//--(end main loop )---


//*********( THE END )***********
