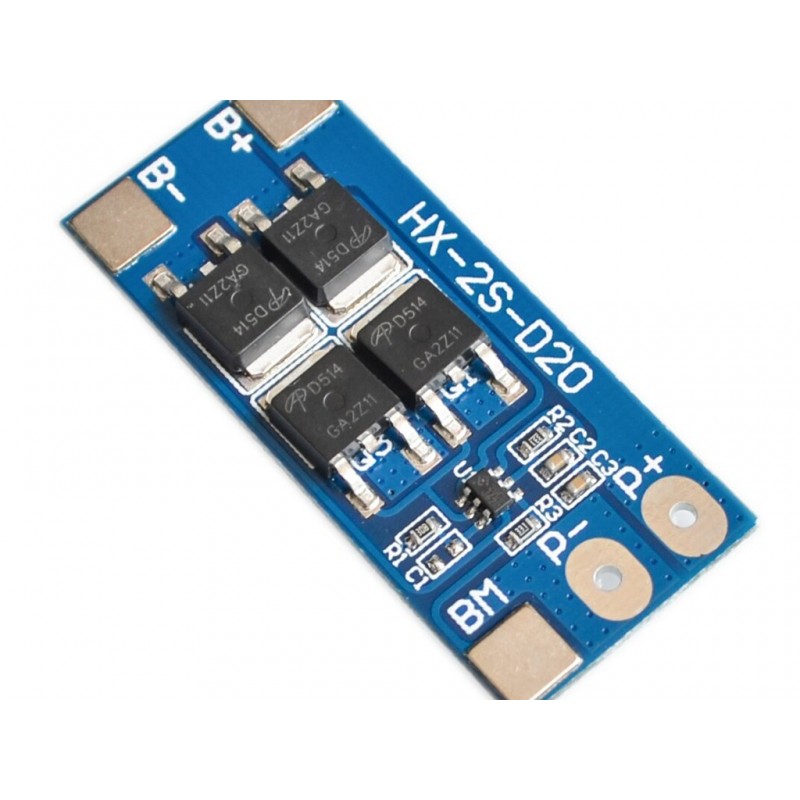

2 Series 7.4V 8.4V 20A 18650 Lithium Battery Protection Board
Rs. 67.00 Rs. 77.00
- Product Code: BATTERYPROTECTION
- Availability: In Stock
- Price in reward points: 1
- For Bulk Order
9962060070
"BMS (Battery Management System) – a battery control system that is designed to monitor the status of batteries, manipulate the manner of charging/discharging the battery, and so on.
- Two batteries (18650) may be connected concurrently to the HX-2S-D20 rate-discharge controller module.
- The module has safety towards quick circuit, overcharge and over-discharge.
- One of the functions of the rate controller is to turn off the power deliver for the batteries when the most capability of at least one battery is reached.
- This BMS controller is designed for greater than 30,000 hours of operation.
- The maximum allowable modern is 20 A.
Features:
1. Small size designed for a four-cell battery pack.
2. Simple and convenient circuit for easy connections
3. Over-charge/Over-discharge Protection."
| SPECIFICATION | |
| Model | HX-2S-D20 |
| Over Charge Voltage Range | 4.25-4.35 V + 0.05 V |
| Over Voltage Range | 2.5-3.0 V + 0.05 V |
| Max. Operating Current | 13 A |
| Max. Limiting Current | 20 A |
| Charging Voltage | 8.4-9 V |
| Quiescent Current | Lower than 10 µA |
| Internal Resistance | <300 Ohm |
| Operating Temperature | -40°C to +50°C |
| OVERVIEW | |
| Over Charge Voltage Range | 4.25-4.35 V + 0.05 V |
| Over Voltage Range | 2.5-3.0 V + 0.05 V |
| Max. Operating Current | 13 A |
| Max. Limiting Current | 20 A |
| Charging Voltage | 8.4-9 V |
PACKAGE INCLUDES:
1 PCS x 2S 20A Battery Protection Board For 18650 Li-Ion Lithium Battery Cell
