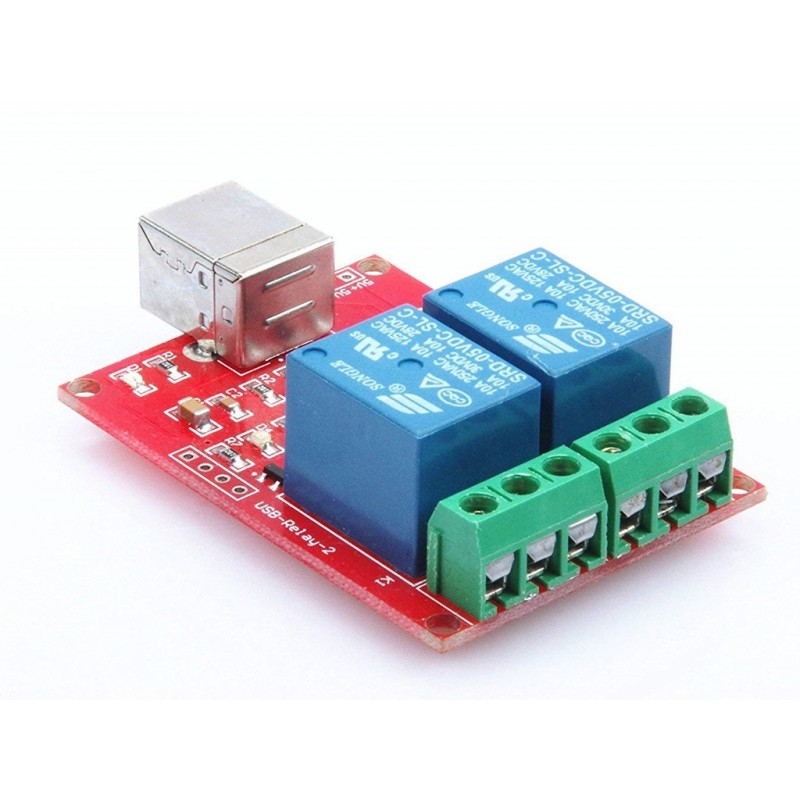

5V 2 Channel Usb Pc Intelligent Control Relay Module
Rs. 274.00 Rs. 329.00
- Product Code: RELAY-USB
- SKU -
- Availability: In Stock
- Price in reward points: 3
- For Bulk Order
9962060070
Quick support on WhatsApp (+919962060070) only between morning 11am-4pm, no call will be answered
"This 5V 2 channel USB PC Intelligent Control Relay Module makes use of HID technology and excessive first-class so no need use the driver. Just you want to download records which comes within the utility and plug and play. It helps Windows 7, XP 32 structures.
The module equips Songle relay and an imported excessive-overall performance USB Control Chip.
It has Military stage PCB manufacturing. Available with 4-channel, 8-channel electricity connector, after connecting the strength. Even if you plug out the USB or turn off the computer, a relay can nevertheless maintain putting situation. It has restoration hole size is 3mm and fix hollow principal second: 52.2mm x 36.6.
Applications :
- Home automation
- Robotics Control
- Control doors and windows via windows system
- Controller power supply etc.
Features :
- Onboard square USB interface, stable connection.
- Use imported high-performance USB control chip.
- Application code: Green indicates that the relay is closed, the red disconnect
- Military grade PCB board production.
- Use genuine pine music relay
- Support Windows 7, XP 32-bit systems
| SPECIFICATION | |
| Operating Voltage Range | 5V DC |
| Maximum Voltage(V) | 250V AC |
| Maximum Current(A) | 10 |
| Supply Current (A) | 0.3 |
| Operating Temperature (°C) | -40 to 85 |
| Opt. Relative Humidity(RH) | 20% ～ 85% |
| OVERVIEW | |
| Contact type | NC / COM / NO |
| Input current | ≥300mA |
| Input voltage | DC 5V |
PACKAGE INCLUDES:
1 PCS x Usb Control 2 Channel 5V Relay Module
