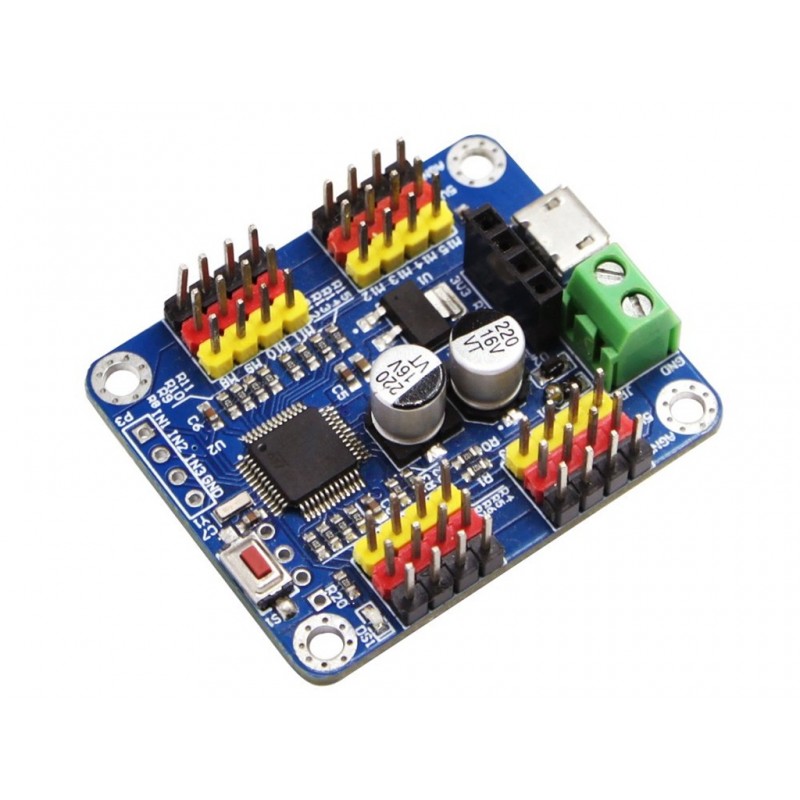

16 Way Steering Gear Control Board Steering Gear Controller Intelligent Robot Serial Port Usb Host Computer App Motor
Rs. 1,314.00 Rs. 1,498.00
- Product Code: MOTORDRIVE-SERVO
- SKU - SE-7190
- Availability: In Stock
- Price in reward points: 11
- For Bulk Order
9962060070
Quick support on WhatsApp (+919962060070) only between morning 11am-4pm, no call will be answered
-The servo motor is used in aircraft model and ship model movement, and has been extended to various electromechanical products.
-It is also widely used in robot control.
-Offline control makes connection more convenient.
Features:
-16-way steering gear control
-USB / TTL connection
-Speed adjustable, Isolated drive, Stable performance, never burn board
-USB power supply(for writing program), no need to install drivers. Just define the state, no need to to calculate detail of the action
-Two-way power supply for the control board and steering gear, , robots, raspberry pi, motors and other equipment
| SPECIFICATION: | |
| -Mounting hole position | 37mm X 30mm, Aperture 3mm. |
| -Frequency | 48 MHz |
| -Channels | 16 |
| -Voltage : USB: 5V , TTL:3.3V(two choose one), Servo Motor supply | 5-7.2v |
| -Communication Interface | USB/ TTL UART (bluetooth optional ) |
| -Baud rate | 9600Kps |
| -PWM accuracy | 0.1us. |
| -Number of action groups | Group 16. |
| -The minimum step of the Servo Motor | 1us. |
| -Chip | STM32 series, high performance, low power consumption |
| -Operating temperature | -40℃~80℃. To adapt to various environments |
| -Maximum number of storage actions | 8192. Satisfy storage requirements |
| OVERVIEW: | |
| -Mounting hole position | 37mm X 30mm, Aperture 3mm. |
| -Frequency | 48 MHz |
| -Channels | 16 |
| -Voltage : USB: 5V , TTL:3.3V(two choose one), Servo Motor supply | 5-7.2v |
| -Communication Interface | USB/ TTL UART (bluetooth optional ) |
| -Baud rate | 9600Kps |
| -PWM accuracy | 0.1us. |
| -Number of action groups | Group 16. |
| -The minimum step of the Servo Motor | 1us. |
| -Chip | STM32 series, high performance, low power consumption |
| -Operating temperature | -40℃~80℃. To adapt to various environments |
| -Maximum number of storage actions | 8192. Satisfy storage requirements |
PACKAGE INCLUDES:
1 PCS x 16 Way Steering Gear Control Board Steering Gear Controller Intelligent Robot Serial Port Usb Host Computer App Motor
