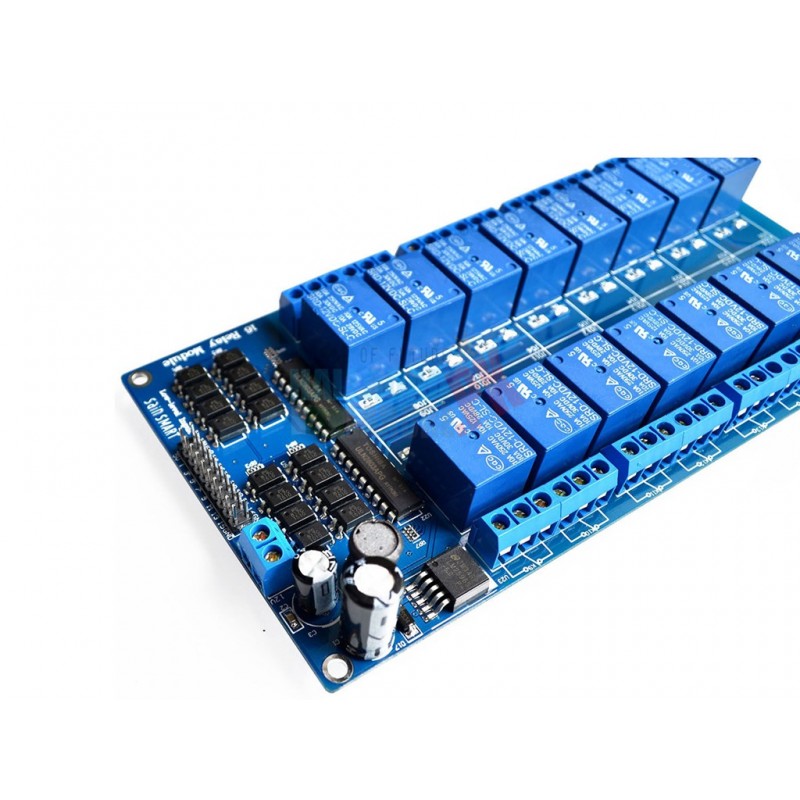

16 Channel 5V Relay Control Board Module With Optocoupler For Arduino Pic Avr Dsp Arm
Rs. 474.00 Rs. 584.00
- Product Code: RELAY
- SKU - SE-6005
- Availability: In Stock
- Price in reward points: 5
- For Bulk Order
9962060070
Quick support on WhatsApp (+919962060070) only between morning 11am-4pm, no call will be answered
This is a 5V 16 Channel Relay Module with Light Coupling LM2576 Power Supply, Be capable of control various home equipment and different system with a massive modern-day. It may be managed without delay by way of Micro-controller (Arduino, 8051, AVR, PIC, DSP, ARM, MSP430, TTL common sense).
This is 5V 16-Channel Relay interface board and each one of the man or woman relays needs 15-20mA Driver Current. The board functions indication LED for Relay output popularity and the standard interface that may be controlled immediately through a lot of extensively used microcontrollers like Arduino etc.
The 5V electromechanical relay module with AC touch potential of 250V which additionally encompass light coupling safety(optocoupler) for isolation of control circuitry. The plate load energy module doesn’t need an external electricity deliver. It helps all SCM Drive.
The LM2596S dollar chip in this relay module shows a moderate fever which is a regular phenomenon as relays, lengthy operating hours have normal fever traits. 4 relay load power to present depart some margin, must avoid excessive-power (approximately 2000W) and long running environment, there might be a few effect on the existence of the product.
Features :
- 5V relay with AC contact capacity of 10A 250V and optocoupler protection.
- Onboard power supply module does not need an external power supply. I / O port driver is active low.
- The module can be used as a microcontroller development board module and also as appliance control, PLC extended output.
- It is using the industry’s top -quality isolation optocouplers, strong anti-jamming ability, stable performance.
- The 1-16 road can be any full on/off or any road.
- Each relay common terminal “COM” are independent, user-friendly access to different signals, each relay are normally closed and normally open with the port.
- Each relay is equipped with motion lights.
- All interfaces can be directly connected through the terminal leads, very convenient.
| SPECIFICATION | |
| Operating Voltage(VDC) | 5V DC |
| Supply Current (A) | 0.2 |
| Channel | 16 |
| Current Capacity at AC250V | 10A |
| Current Capacity at DC30V | 10A |
OVERVIEW:
-5V relay with AC contact capacity of 10A 250V and optocoupler protection.
-Onboard power supply module does not need an external power supply. I / O port driver is active low.
-The module can be used as a microcontroller development board module and also as appliance control, PLC extended output.
-It is using the industry’s top -quality isolation optocouplers, strong anti-jamming ability, stable performance.
-The 1-16 road can be any full on/off or any road.
-All interfaces can be directly connected through the terminal leads, very convenient.
PACKAGE INCLUDES:
1 PCS x 16 Channel 5V Relay Module With Optocoppler For Arduino Pic Avr Dsp Arm
