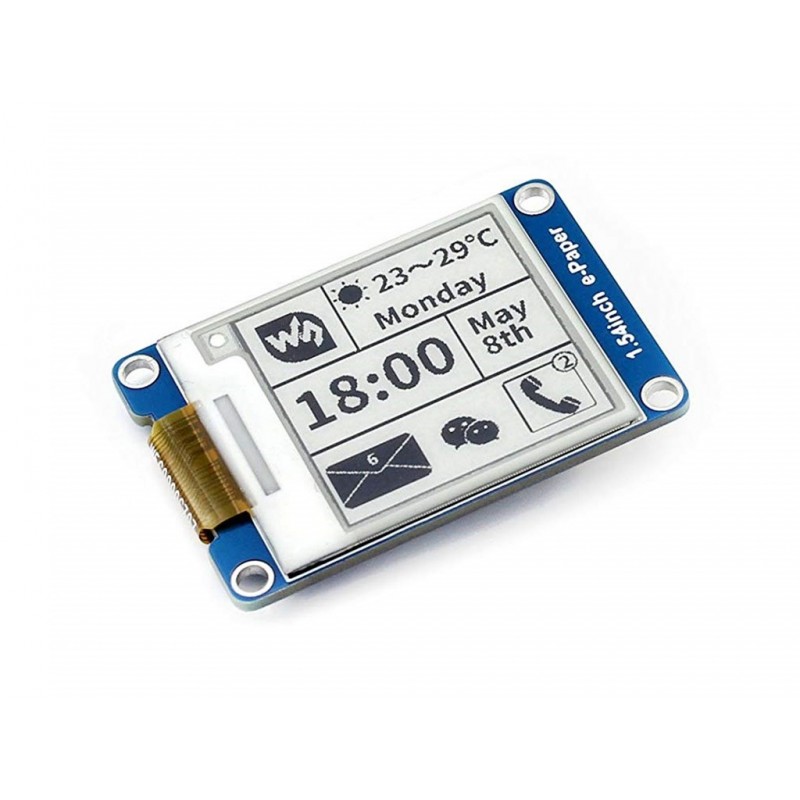

1.54 Inch E Ink Paper Display Module With Spi Interface
Rs. 827.00 Rs. 993.00
- Product Code: DISPLAY-EINK
- Availability: 2-3 Days
- Price in reward points: 10
- For Bulk Order
9962060070
1.54-inch e-Ink Paper Display Module with SPI Interface comes with 200×200 decision and embedded controller module. It is speaking thru SPI interface and it helps partial refresh. As these presentations don't have any backlight panels and it doesn’t want a continuous strength supply to display the (static statistics with periodic periods) statistics at the display, it has a wonderful advantage of ultra-low power consumption. Also, it has a wide viewing perspective, extremely good viewing impact beneath sunlight, it is a really perfect desire for applications consisting of shelf label, business device, and so forth.
Features:
-No backlight so keeps displaying last content for a long time even when the power is down
-Ultra low power consumption, basically power is only required for refreshing
-SPI interface, for connecting with controller boards like Raspberry Pi/Arduino/Nucleo, etc.
-Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
-Wide viewing angle, great viewing effect under sunlight.
| SPECIFICATION | |
| Operating Voltage(VDC) | 3.3V/5V |
| Interface | 3-wire SPI, 4-wire SPI |
| Display Color | Black and White |
| Grey level | 2 |
| Display Resolution | 200 x 200 |
| Display Size | 1.54 inch (40 mm) |
| Partial Refresh Time | 0.3s |
| Full Refresh Time | 2s |
| Dot Pitch | 0.138 × 0.138 |
| Refresh Power | 26.4mW(typ.) |
| Standby Power | <0.017mW |
| Outline dimension | 48mm × 33mm |
| Viewing Angle | >170° |
| Dimensions in mm (LxWxH) | 48 x 34 x 10 |
| Weight (gm) | 20 |
| Shipment Dimensions | 8 × 7 × 4 cm" |
OVERVIEW:
-Display Resolution: 200 x 200
-Display Screen Color: Black and White
-No backlight so keeps displaying last content for a long time even when the power is down
-Ultra low power consumption, basically power is only required for refreshing
-SPI interface, for connecting with controller boards like Raspberry Pi/Arduino/Nucleo, etc.
PACKAGE INCLUDES:
1 PCS x 1.54 Inch E Ink Paper Display Module With Spi Interface
1 PCS x Interfacing Cable
